Data Science for Electron Microscopy
Lecture 8: Imaging Inverse Problems 1

Philipp Pelz

FAU Erlangen-Nürnberg

What is Computational Imaging?

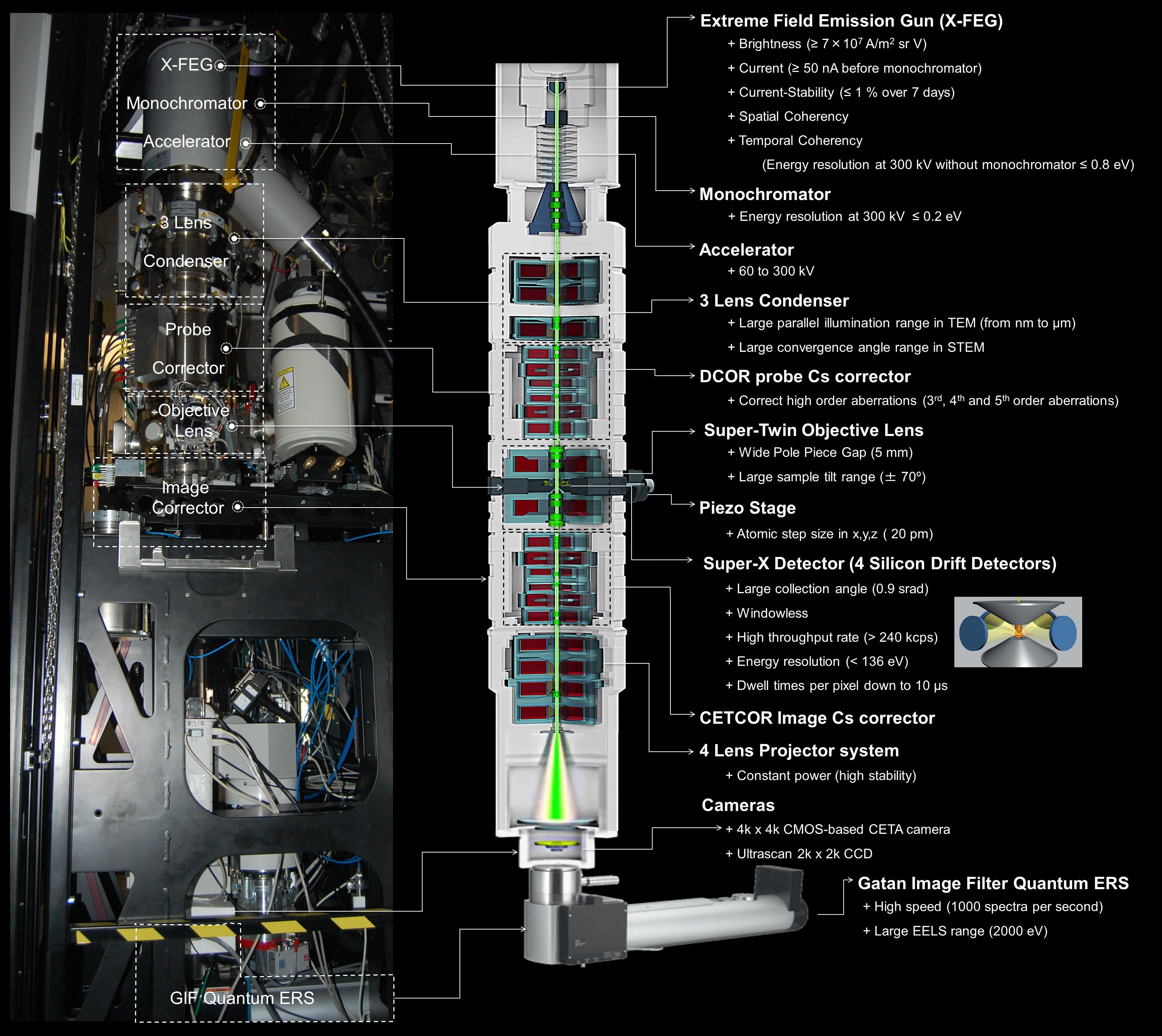

What is Computational Imaging in Electron Microscopy?

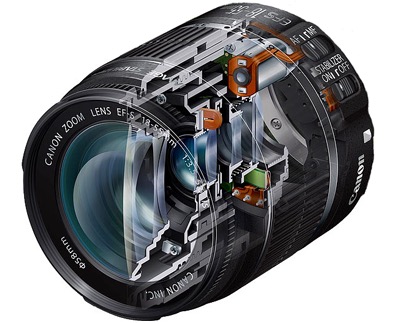

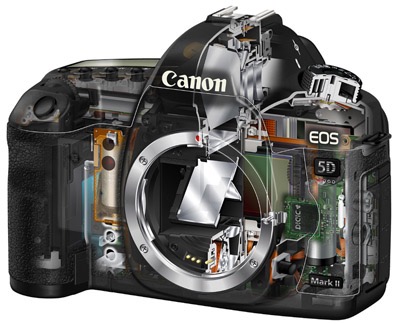

Optically encode sample information on the detector
Computationally reconstruct the sample information from the detector data
Model the image formation as an inverse problem

Roadmap

What is an inverse problem?
Formal problem statement
Why inverse problems are hard
Signal models & priors

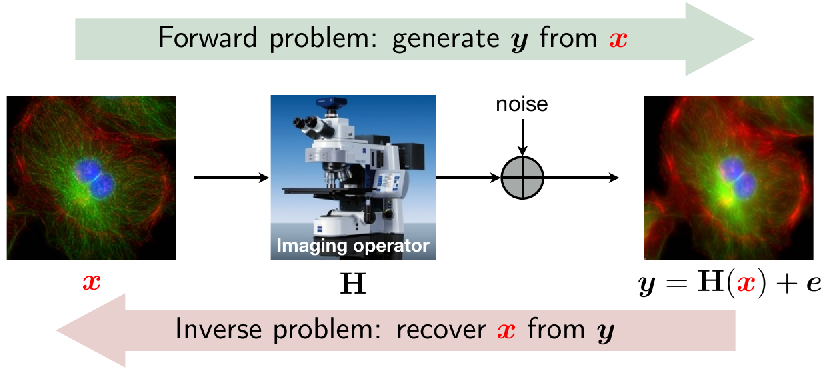

What is an Inverse Problem?

\[ \begin{align*} &\text{Unknown signal:}\quad x \\ &\text{Known forward model:}\quad H \\ &\text{Measured data:}\quad y = H(x) + e \\ &\text{Goal: reconstruct } x \text{ as accurately as possible} \end{align*} \]

What makes imaging inverse problems challenging?

solution is not unique
data is noisy (measurement & model noise)
problem is intractable
data is very high-dimensional

The vast majority of imaging problems can be formulated as inverse problems.

Example forward models

Imaging Problem	Radiation Type	Forward Model / Measurement / Model Equation	Variations / Notes

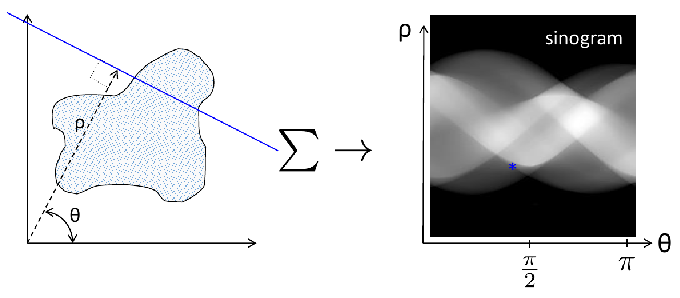

2D or 3D tomography	coherent x-ray	\(y_i = R_{\theta_i} x\)	parallel, cone beam
3D deconvolution microscopy	fluorescence	\(y = Hx\)	brightfield, confocal, light sheet
Structured illumination microscopy (SIM)	fluorescence	\(y_i = HW_i x\)	full 3D reconstruction; non-sinusoidal patterns
Positron emission tomography (PET)	gamma rays	\(y_i = H \theta_i x\)	list mode with time-of-flight
Magnetic resonance imaging (MRI)	radio frequency	\(y = SFx\)	uniform or nonuniform sampling in k-space; dynamic MRI: gated or nongated, retrospective registration
Optical diffraction tomography (ODT)	coherent light	\(y_{t,i} = S_t F W_i x\)	holography or gating
Interferometry		\(y_i = W_i F x\)

Why Is It Difficult?

1. Non‑uniqueness (Under‑sampling)

Compressive sensing example: \[ y = Ax, \quad A \in \mathbb{R}^{m \times n},\; m < n \]

Multiple signals consistent with measurement
If (Az = 0), then (x) and (x’ = x + z) map to same (y)
Impossible to distinguish without assumptions about (x)

2. Ill‑conditioning (Noise Amplification)

Deconvolution example: \[ y = Ax + e \] (blurred + noisy image)

Matrix \(A\) invertible but \(A^{-1}\) poorly conditioned
Small noise \(e\) → huge reconstruction error
Direct inversion amplifies measurement noise

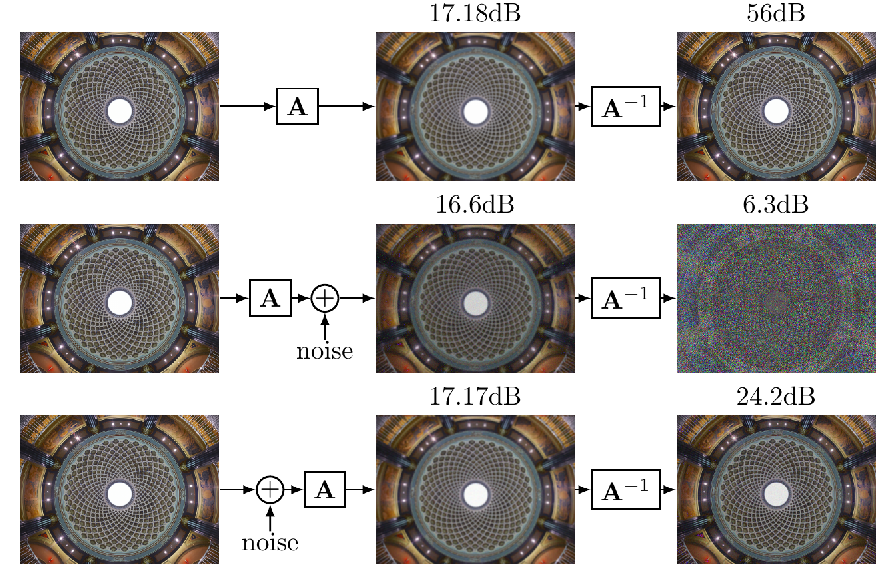

Deconvolution with a Gaussian kernel as an example of an ill- conditioned inverse problem. The PSNR relative to the original image is above each image. The linear operator (or matrix) A implements a con- volution with a 7 × 7 Gaussian kernel. Top row: Applied to an image, the operator yields a blurry image. The inverse A−1 deconvolves the blurry image, and gives an image that is essentially perfect (56dB instead of ∞dB is due working with floating point numbers). Middle row: The inverse A−1 is poorly conditioned which we can see if we add a small amount of Gaussian noise to the blurry image. Applied to the noisy measurement, the inverse A−1 generates a very noisy image (6.3dB). Bottom row: If the same amount of noise is added to the original image, it has a much smaller, essentially invisible effect.

Example: Deblurring 1

#| code-fold: true
#| code-summary: "Show the code"
#| fig-height: 3
#| fig-width: 8
#| out-width: "70%"
import numpy as np
import matplotlib.pyplot as plt
from PIL import Image
from skimage.metrics import structural_similarity as ssim


# Read image, resize, and make sure coordinates are between 0 and 1
img = Image.open('00004_TE_1808x1352.png')
width,height = img.size
img = img.resize((width//2, height//2))
img_arr = np.array(img)/255

#| code-fold: false
#| code-summary: "Define Gaussian blur kernel"
#| label: blur-kernel
#| fig-height: 2
#| fig-width: 4

kernel_size = 7
sigma = 4
kernel = np.zeros((kernel_size, kernel_size))
for i in range(kernel_size):
    for j in range(kernel_size):
        kernel[i, j] = np.exp(-((i-kernel_size//2)**2 + (j-kernel_size//2)**2) / (2*sigma**2))
kernel /= kernel.sum()

plt.title('Kernel')
plt.imshow(kernel, cmap='gray')
plt.show()

Example: Deblurring 2

#| fig-height: 1.5
#| fig-width: 6
def blur_image(image, kernel):
    # Apply Fourier transform to each color channel of the image and kernel
    image_fft = np.dstack([np.fft.fft2(image[:,:,i]) for i in range(image.shape[2])])
    kernel_fft = np.dstack([np.fft.fft2(kernel, s=image[:,:,i].shape) for i in range(image.shape[2])])

    # Convolve the Fourier transformed image and kernel for each channel
    image_blur_fft = image_fft * kernel_fft

    # Apply inverse Fourier transform to the convolved image for each channel
    image_blur = np.dstack([np.fft.ifft2(image_blur_fft[:,:,i]).real for i in range(image.shape[2])])

    return image_blur

Example: Deblurring 3

#| fig-height: 2.5
#| fig-width: 7
#| classes: "tall-cell"
# Define Fourier deconvolution function for one channel
def fourier_deconvolution1channel(img_blur, kernel, eps=1e-3):
    # Compute Fourier transforms of image and kernel
    img_fft = np.fft.fft2(img_blur, axes=(0,1))
    kernel_fft = np.fft.fft2(kernel, s=img_blur.shape[:2], axes=(0,1))

    # Deconvolve in Fourier domain
    kernel_fft_conj = np.conj(kernel_fft)
    img_fft_deconv = (kernel_fft_conj / (np.abs(kernel_fft)**2 + eps)) * img_fft
    img_deconv = np.real(np.fft.ifft2(img_fft_deconv, axes=(0,1)))

    return img_deconv

# Fourier deconvolution for all channels
def fourier_deconvolution(img_blur, kernel, eps=1e-3):
    img_deconv = np.zeros_like(img_blur)
    for i in range(3):
        img_deconv[:,:,i] = fourier_deconvolution1channel(img_blur[:,:,i], kernel, eps)
    return img_deconv
def PSNR(img,hatimg):
    mse = np.sum((img-hatimg)**2) / np.prod(img.shape)
    if mse == 0:
        return 100
    PIXEL_MAX = np.max(img)
    return 20 * np.log10(PIXEL_MAX / np.sqrt(mse))

# normalize kernel to be in 0,255 range
kernel_normalized = (kernel - np.min(kernel)) / np.max(kernel) * 255

# compute PSNR between two images
def PSNR(img,hatimg):
    mse = np.sum((img-hatimg)**2) / np.prod(img.shape)
    if mse == 0:
        return 100
    PIXEL_MAX = np.max(img)
    return 20 * np.log10(PIXEL_MAX / np.sqrt(mse))

# compute SSIM between two images
def SSIM(img,hatimg):
    return ssim(img,hatimg,multichannel=True)

Example: Deblurring 4

#| fig-height: 4
#| fig-width: 10
# blur image
img_blur = blur_image(img_arr, kernel)
# Deblur image with Fourier deconvolution
img_deblur = fourier_deconvolution(img_blur, kernel, eps=1e-10)
# Display original, blurred, and deblurred images side by side
fig, ax = plt.subplots(1, 3, figsize=(15, 5))
ax[0].imshow(img_arr)
ax[0].set_title('Original')
ax[1].imshow(img_blur)
ax[1].set_title('Blurred')
ax[2].imshow(img_deblur)
ax[2].set_title('Deblurred')
plt.show()
# clip img_deblur to be in 0,1 range
img_deblur = np.clip(img_deblur, 0, 1)
print("PSNR blurred: ", PSNR(img_arr,img_blur) )
print("PSNR deblurred: ", PSNR(img_arr,img_deblur ) )
print("SSIM blurred: ", ssim(img_arr, img_blur, channel_axis=2,data_range=1.0) )
print("SSIM deblurred: ", ssim(img_arr, img_deblur, channel_axis=2,data_range=1.0) )
print("max diff:", np.max(img_arr - img_deblur))
print("max diff:", np.max(img_arr - img_blur))

Example: Deblurring 5: Blur, add noise, unblur

#| fig-height: 4
#| fig-width: 10
# Blur image
img_blur = blur_image(img_arr, kernel)
# Add noise to img_deblur
img_blur = img_blur + 0.05 * np.random.randn(*img_blur.shape)
# Deblur image with Fourier deconvolution
img_deblur = fourier_deconvolution(img_blur, kernel, eps=1e-3)
# Display original, blurred, and deblurred images side by side
fig, ax = plt.subplots(1, 3, figsize=(15, 5))
ax[0].imshow(img_arr)
ax[0].set_title('Original')
ax[1].imshow(img_blur)
ax[1].set_title('Blurred')
ax[2].imshow(img_deblur)
ax[2].set_title('Deblurred')
plt.show()
print("PSNR blurred: ", PSNR(img_arr,img_blur) )
print("PSNR deblurred: ", PSNR(img_arr,img_deblur ) )

Example: Deblurring 6: Add noise, blur, unblur,

#| fig-height: 4
#| fig-width: 10
# add noise
img_noisy = img_arr + 0.05 * np.random.randn(*img_arr.shape)
# blur image
img_blur = blur_image(img_noisy, kernel)
# deblur image
img_deblur = fourier_deconvolution(img_blur, kernel, eps=1e-3)
fig, ax = plt.subplots(1, 3, figsize=(15, 5))
ax[0].imshow(img_noisy)
ax[0].set_title('Original')
ax[1].imshow(img_blur)
ax[1].set_title('Blurred')
ax[2].imshow(img_deblur)
ax[2].set_title('Deblurred')
plt.show()
print("PSNR blurred: ", PSNR(img_arr,img_blur) )
print("PSNR deblurred: ", PSNR(img_arr,img_deblur ) )

3. Non‑linearity & Unknown Parameters

Forward model \(f\) may be non‑linear
System parameters may be unknown/uncertain

Regularized Inversion

Regularized inversion provides a unified approach for integrating physics and prior knowledge:

Image recovery is often an ill-posed inverse problem
Formulation as a regularized optimization problem

Example: Linear Inverse Problems (20th Century Theory)

Forward model with noise: \[y = H(x) + e\]

Regularized solution: \[\hat{x} = \arg\min_x \{f(x)\}\]

where \[f(x) := g(x) + h(x)\]

Explicit solution: \[\hat{x} = \arg\min_x \left\{\frac{1}{2}\|y-Hx\|_2^2 + \frac{\lambda}{2} \|Dx\|_2^2\right\} =\]
\[ (H^HH + \lambda D^HD)^{-1}H^Hy = R_\lambda y\]

Interpretation:

“Filtered” backprojection
Assumption: Gaussians everywhere

Optimization Algorithms

FISTA and ADMM are two popular algorithms for large-scale and nonsmooth optimization:

Fast Iterative Shrinkage/Thresholding Algorithm (FISTA)

Gradient descent on data term
Proximal operator on prior term
Momentum acceleration

\[\begin{aligned} z_k &= s_{k-1} - \nabla g(s_{k-1}) \\ x_k &= \text{prox}_h(z_k) \\ s_k &= x_k + \left(\frac{q_{k-1}-1}{q_k}\right)(x_k-x_{k-1}) \end{aligned} \]

Alternating Direction Method of Multipliers (ADMM)

Proximal operators on both terms
Augmented Lagrangian approach
Splitting variables

\[\begin{aligned} z_k &= \text{prox}_g(x_{k-1} - s_{k-1}) \\ x_k &= \text{prox}_h(z_k + s_{k-1}) \\ s_k &= s_{k-1} + (z_k - x_k) \end{aligned} \]

For minimizing: \(f(x) = g(x) + h(x)\)

Interpretation

Both FISTA and ADMM alternate between increasing data consistency and reducing noise:

Gradient descent \(\nabla g\):

Less data consistent → more data consistent

Proximal operators \(\text{prox}_g\), \(\text{prox}_h\):

Less data consistent → more data consistent
More noisy image → less noisy image

Is there a better way to represent images than using fixed sparsity-promoting transforms?

Question: The interest in sparsity-driven imaging highlighted the importance of structural priors for image formation

Question: Do we know a more flexible, sophisticated, and data-adaptive tool for characterizing imaging priors?

Answer: Yes, deep neural nets provide a state-of-the-art tool for representing and enforcing sophisticated structural information

Warning

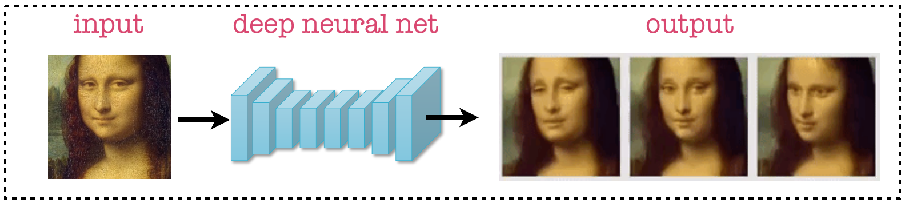

How to use deep neural nets as priors for imaging?

Basic idea: Train a mapping from the measured data to the desired image

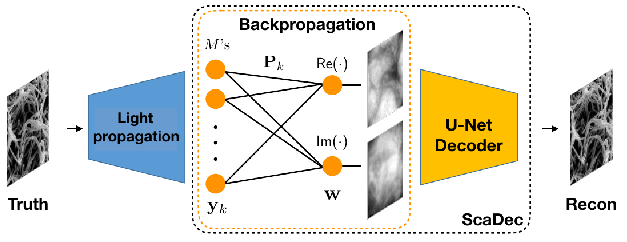

Example: Simulate light propagation and train a neural net to invert

Question: What are some of the limitations of this approach?

The neural net learns both the forward model and the prior
- May learn incorrect/simplified physics, no guarantee of physical consistency
Consistency to measured data not ensured
- Network output may deviate from measurements
Finding efficient end-to-end mapping is challenging
- Fully connected layers don’t scale well

Key limitation

Direct inversion networks trade physical consistency for computational efficiency

Plug-and-Play (PnP) Priors - Separating Forward Models from Learned Priors

Plug-and-Play (PnP) Priors

Key idea: Separate the forward model from the learned prior

Forward model: Physics-based data consistency term
- Ensures output matches measurements
- Preserves physical constraints

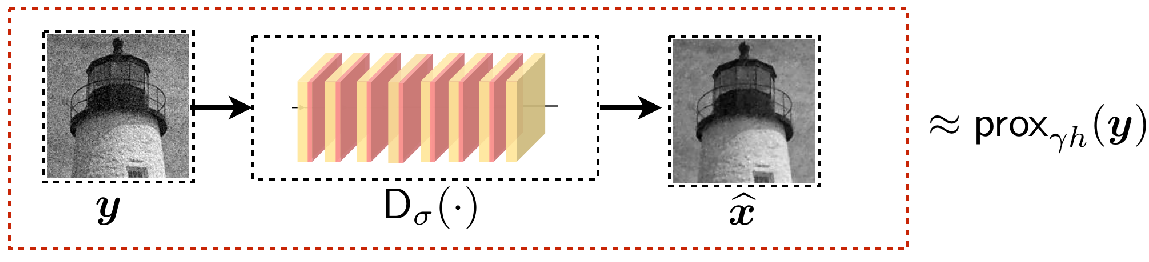

Learned prior: Pre-trained denoising network
- Captures complex image statistics
- No knowledge of forward model needed

Algorithms:

\[ \begin{aligned} z^k &\leftarrow \color{green}{\boxed{\text{prox}_{\alpha g}(x^{k-1} - s^{k-1})}} \\ x^k &\leftarrow \color{red}{\boxed{D_\sigma(z^k + s^{k-1})}} \\ s^k &\leftarrow s^{k-1} + (z^k - x^k) \end{aligned} \]

                                        PnP-ADMM

\[ \begin{aligned} z^k &\leftarrow \color{green}{\boxed{s^{k-1} - \gamma\nabla g(s^{k-1})}} \\ x^k &\leftarrow \color{red}{\boxed{D_\sigma(z^k)}} \\ s^k &\leftarrow x^k + ((q_{k-1} - 1)/q_k)(x^k - x^{k-1}) \end{aligned} \]

                                        PnP-FISTA

forward model (green box): data consistency term that ensures physical constraints
denoiser as prior (red box): learned prior that captures complex image statistics

Advantage

Combines physical accuracy with powerful learned priors

Key insight: Prior knowledge converts ill‑posed \(\rightarrow\) well‑posed problems

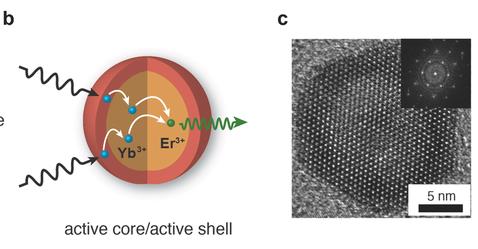

Tomography Motivation 1: Structure Directly Affects Functionality

P Zrazhevskiy et al, Chem So Rev (2010)

L Manna et al, Nature (2003)

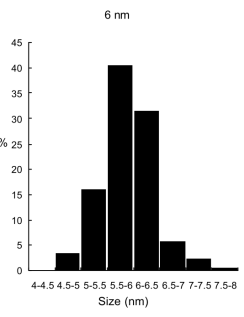

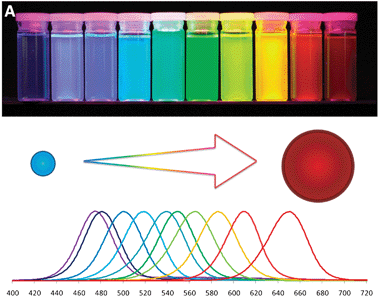

Quantum dot size affects their optical emission color

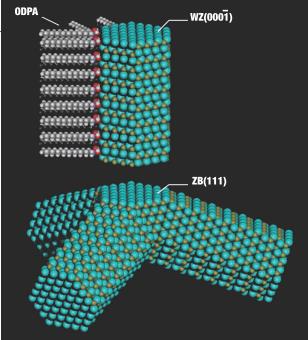

Tetrapod shape affects their optical absorption
Need to measure morphology to determine shape mediated functionality

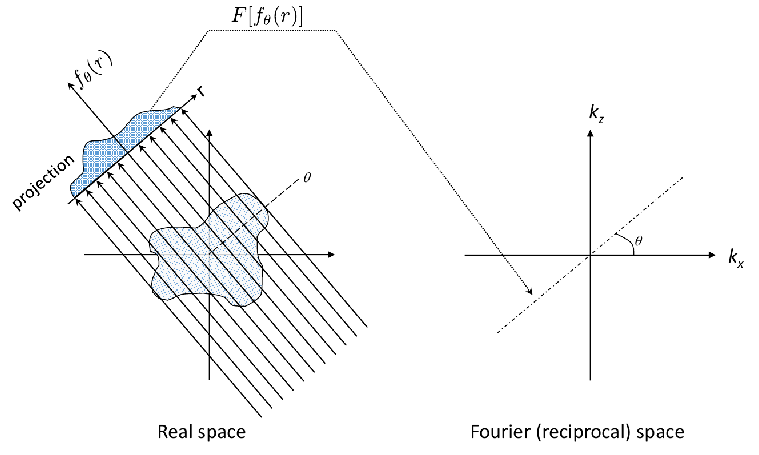

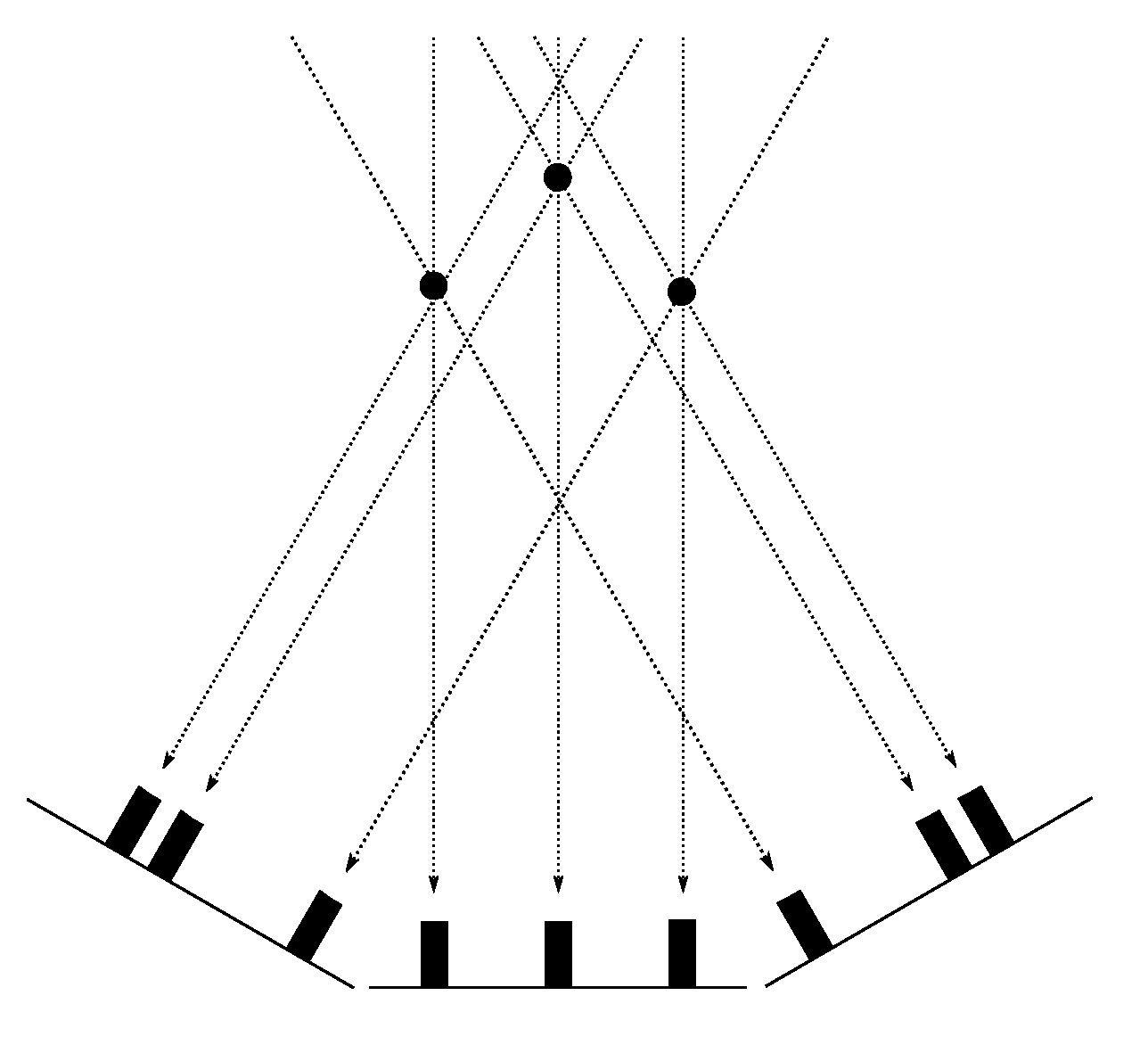

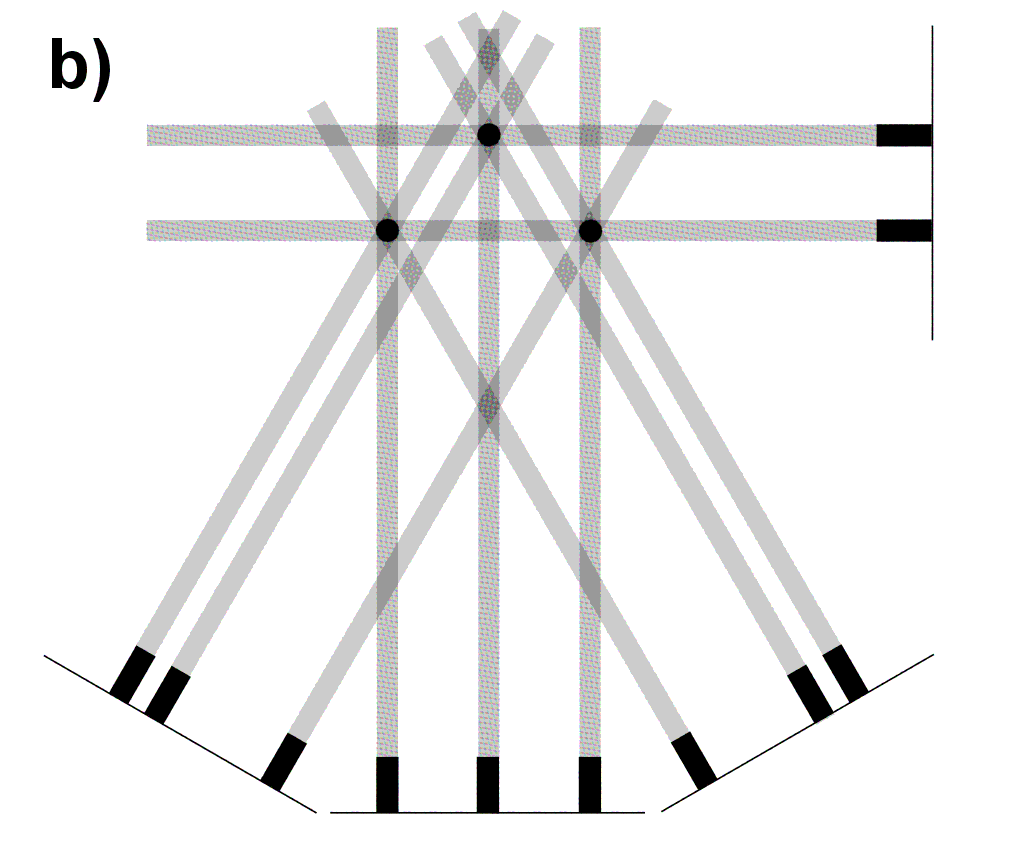

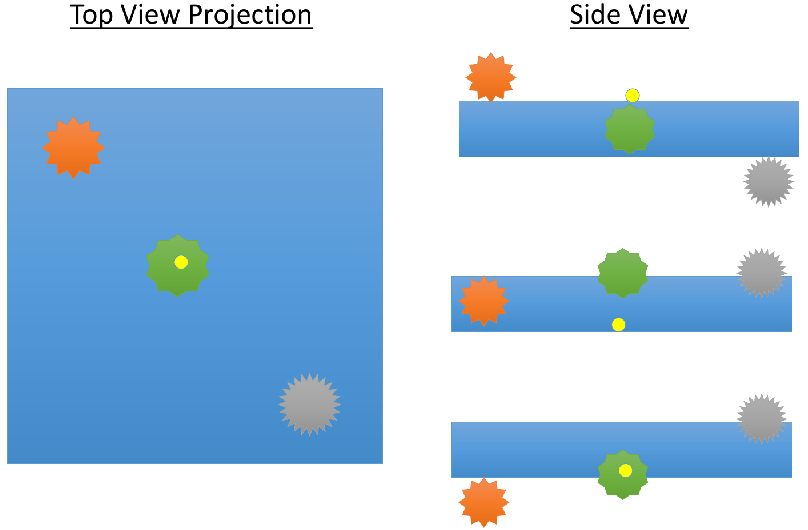

Tomography Motivation 2: Projections Are Misleading

Microscopists study the shadows on the wall because they do not have access to the objects that create them.

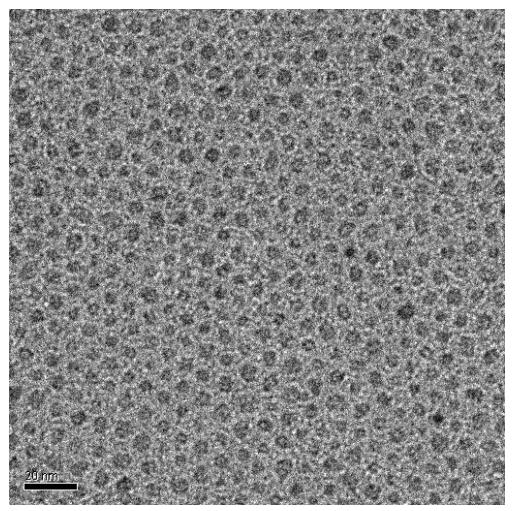

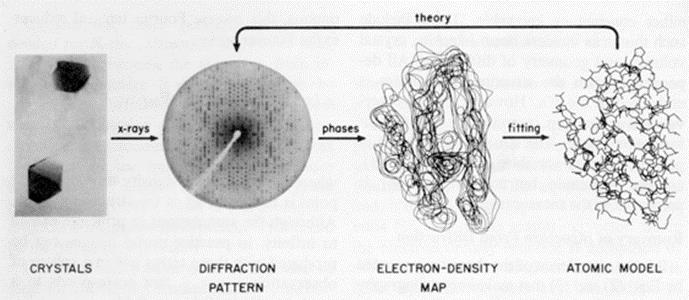

Tomography Motivation 3: Hetero-/Homo-geneous Structures

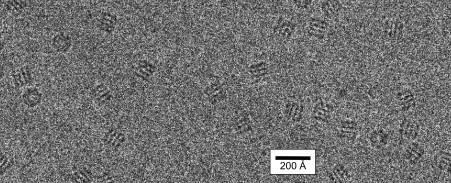

Many biological structures can be copied and purified
- Averaging improves SNR, reduces damage
- 3D tertiary form gives molecular functionality and interactions
Physical science nanomaterials are different on the atomic scale
- Averaging “Monodisperse” NPs
Must resolve local atomic structure directly to measure:
- Defects, compositional anti-phase boundaries, amorphous structure, dopant atoms

single-particle imaging [1]
nanoparticle size distribution [2]
defects [3]

Tomography Motivation 4: Projection Problem for TEMs

Techniques for 3D structural analysis

All of these are inverse problems

Each of these techniques requires solving an inverse problem to reconstruct the 3D structure from indirect measurements:

X-ray/Electron crystallography: Reconstruct atomic positions from diffraction patterns
Cryo-EM: Reconstruct 3D protein structure from 2D projections

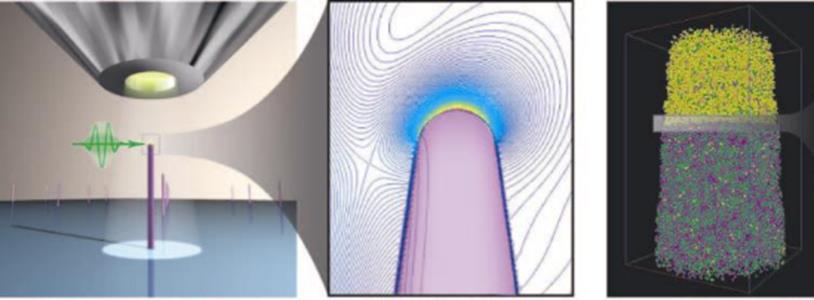

Atom Probe Tomography: Reconstruct 3D atomic positions from time-of-flight and position data
Electron tomography: Reconstruct 3D density from 2D projections at different angles

Projection Requirement

Projected intensity must be a monotonic function of some property of the the object
Mass, thickness, electric-potential, etc.
Beer’s law for scattering is exponential with thickness: \[I = I_0 \exp(-t/\lambda)\]
TEMs are in fact structure projectors under certain conditions
TEM objective aperture enhances amplitude contrast
ADF-STEM produces incoherent Z contrast

Linear Projection Operation

An object’s density can be discretized as a function f(x,y,z)

Projection is similar to summation along a given direction:

\[\int f(x,y,z)dz = \sum_z f(x,y,z) = f(x,y)\]

\[\int f(x,y,z)d\theta = \sum_\theta f(x,y,z) = f_\theta(x,y)\]

3 Linear Projections

A simple sum of the mass at each tilt-angle projected onto a line
Each tilt tells us a little more about the shape and distribution

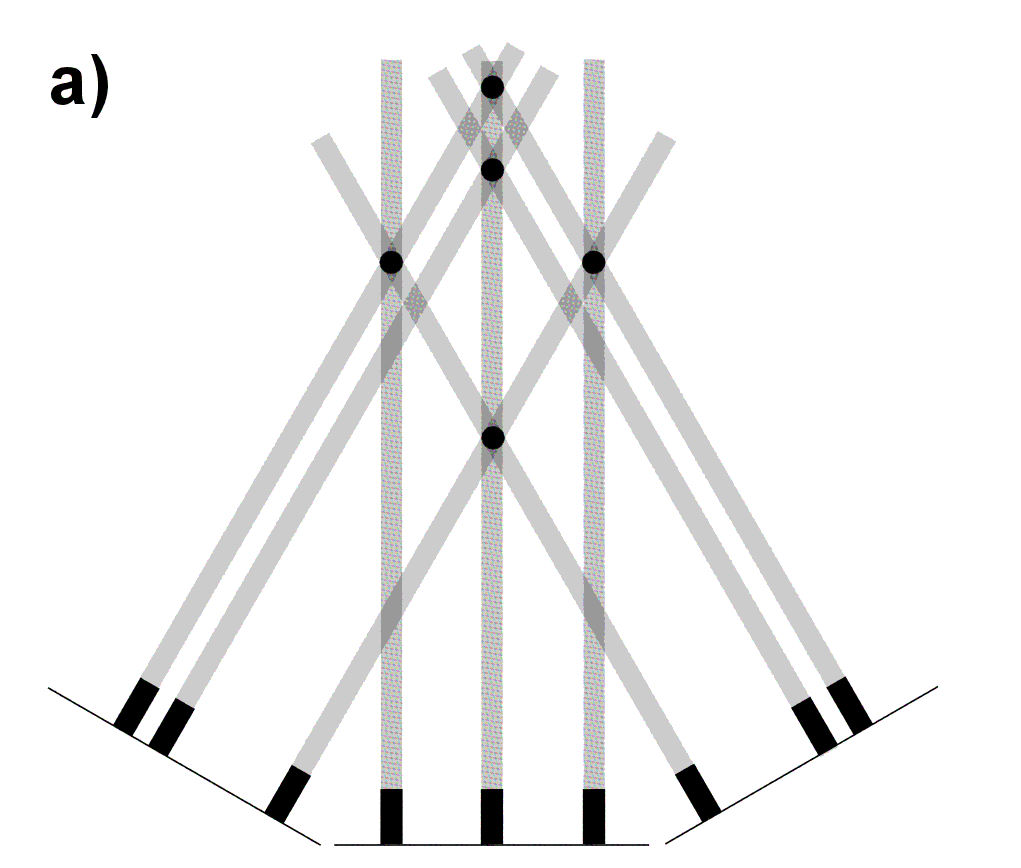

Tomographic Backprojection

Real space transform
Only 3 projections produce a clear artifact
Many projections allow reconstruction of complicated objects

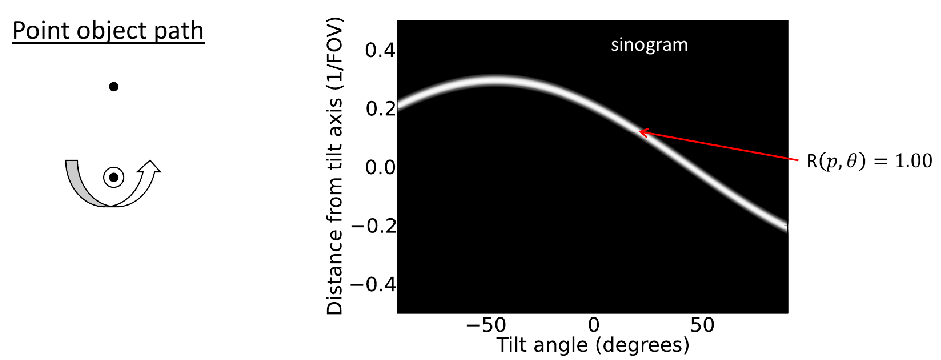

Meaning of a Sinogram

A Sinogram shows the projected density a distance from the tilt axis at each tilt angle
Equivalent to Yq in previous image stack video
Reconstruct algorithms interpolate on the sonogram to fill a volume

Limited Tomography Reconstruction

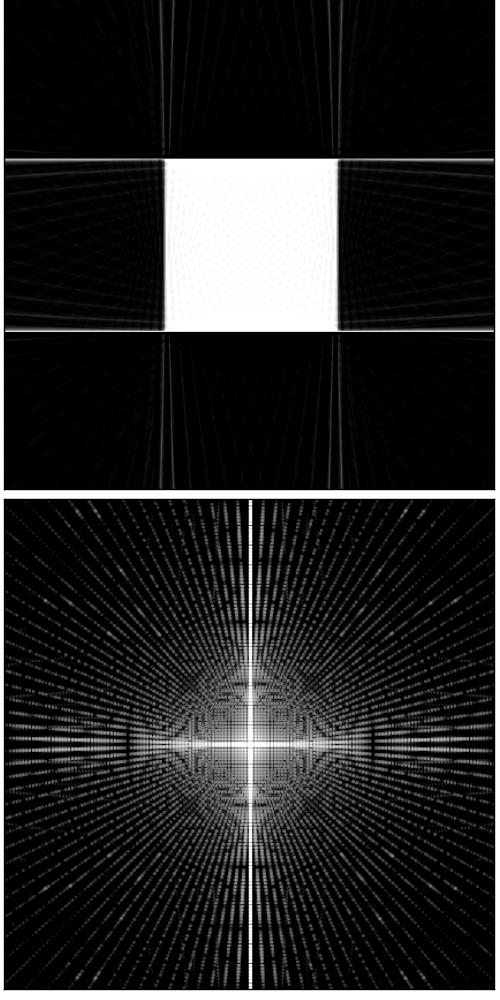

Full reconstruction

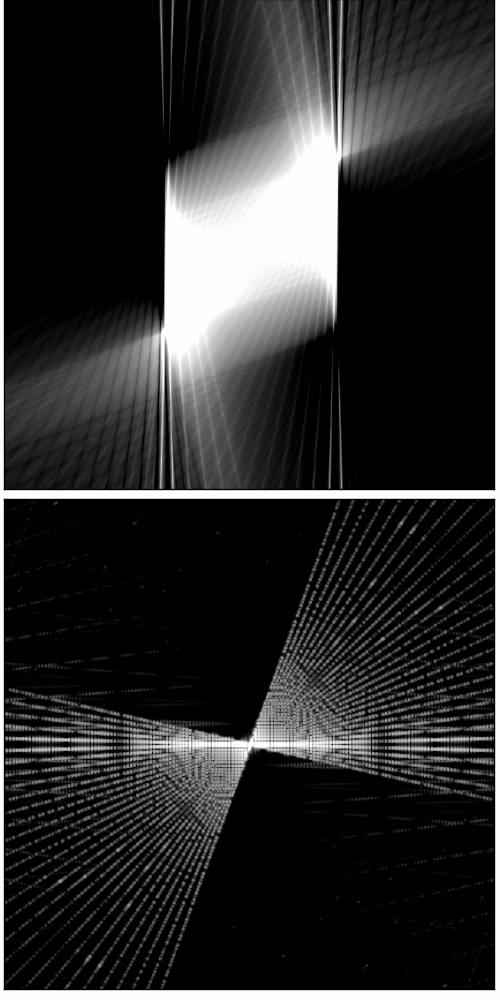

30 degree missing wedge

Radon backprojection ±70°, 50 projections

FFT of Reconstruction

Fourier Slice Theorem

Object has mass-density f ( x, z )
Acquire many projections to sample the object’s information
Possibility to invert Fourier space to retrieve full 3D information of the object
Fourier Slice Theorem:

\(F_{2D}[f(x,z)] = \int \int f(x,z)e^{i2\pi(k_x x + k_z z)}dxdz\)

\(F_{2D}[f(x,y)] = F_x[F_y[f(x,y)]] = \underline{F}(k_x,k_y)\)

\(F_{3D}[f(x,y,z)] = F_x[F_y[F_z[f(x,y,z)]]] = \underline{F}(k_x,k_y,k_z)\)

Note

The Fourier Slice Theorem states: A projection of an object is equivalent to a central slice of the object’s Fourier transform at the viewing angle

The Radon Transform

Radon transform is a sum along a line at angle θ
No Fourier transform is used
Avoids reciprocal space amplitude / phase
Simpler interpolation

Example Inverse Problem: Tomography - metrics and operators

#| fig-height: 4
#| fig-width: 10
#| code-fold: false
#| code-summary: "Show the code"
import numpy as np
import torch as th
import skimage.data as skdata
import skimage.transform as sktrans
import matplotlib.pyplot as plt
from scipy.ndimage import gaussian_filter
# Define PSNR function
def PSNR(img1, img2):
    """
    Calculate Peak Signal-to-Noise Ratio between two images

    Args:
        img1, img2: numpy arrays of same shape

    Returns:
        PSNR value in dB
    """
    mse = np.mean((img1 - img2) ** 2)
    if mse == 0:
        return float('inf')
    max_pixel = 1.0  # assuming normalized images [0,1]
    return 20 * np.log10(max_pixel / np.sqrt(mse))

# Define SSIM function
def SSIM(img1, img2):
    """
    Calculate Structural Similarity Index between two images

    Args:
        img1, img2: numpy arrays of same shape

    Returns:
        SSIM value between -1 and 1 (1 = identical images)
    """
    from skimage.metrics import structural_similarity as ssim
    return ssim(img1, img2, data_range=1.0)

# Define tomography forward operator
def radon_forward(img, angles):
    """
    Compute Radon transform of an image using PyTorch

    Args:
        img (torch.Tensor): Input image [B,C,H,W]
        angles (torch.Tensor): Projection angles in radians

    Returns:
        torch.Tensor: Radon transform (sinogram) [B,C,len(angles),W]
    """
    device = img.device
    batch_size, channels, height, width = img.shape
    num_angles = len(angles)

    # Create coordinate grid
    x = th.linspace(-1, 1, width).to(device)
    y = th.linspace(-1, 1, height).to(device)
    X, Y = th.meshgrid(x, y, indexing='ij')

    # Initialize output sinogram
    sinogram = th.zeros(batch_size, channels, num_angles, width).to(device)

    for i, theta in enumerate(angles):
        # Rotation matrix
        cost, sint = th.cos(theta), th.sin(theta)

        # Rotate coordinates
        Xrot = X * cost - Y * sint
        Yrot = X * sint + Y * cost

        # Project along y-axis by summing
        # Create affine transformation matrix
        affine_matrix = th.tensor([[cost, -sint, 0],
                                 [sint, cost, 0]], device=device).unsqueeze(0)
        grid = th.nn.functional.affine_grid(affine_matrix, img.size(), align_corners=False)
        rotated = th.nn.functional.grid_sample(img, grid, align_corners=False)
        proj = th.sum(rotated.squeeze(), dim=0)

        sinogram[..., i, :] = proj

    return sinogram

img = skdata.astronaut()

img = sktrans.resize(img, (128, 128))
img = gaussian_filter(img, sigma=1)
# Convert to grayscale by taking mean across color channels
img = np.mean(img, axis=2)
img = img.astype(np.float32) / 255.0
img = th.from_numpy(img).unsqueeze(0).unsqueeze(0) # Add channel dim for grayscale
# Create circular mask
h, w = img.shape[-2:]
center = (h//2, w//2)
Y, X = np.ogrid[:h, :w]
dist_from_center = np.sqrt((X - center[1])**2 + (Y - center[0])**2)
mask = dist_from_center <= h//2
mask = th.from_numpy(mask).float()
mask = mask.unsqueeze(0).unsqueeze(0)  # Match img dimensions

# Apply mask
img = img * mask

Example Inverse Problem: Tomography

#| fig-height: 4
#| fig-width: 10
#| code-fold: true
#| code-summary: "Show the code"


 # Generate projection angles
angles = th.linspace(0, th.pi, 180)

# Compute forward projection
sinogram = radon_forward(img, angles)
# Create figure
# Create figure with GridSpec to control subplot widths
fig = plt.figure(figsize=(18, 6))
gs = plt.GridSpec(1, 2, width_ratios=[1, 3])  # 1:2 ratio = 1/3 : 2/3

ax0 = fig.add_subplot(gs[0])
ax1 = fig.add_subplot(gs[1])

ax0.imshow(img.squeeze().cpu().numpy(), cmap='gray')
ax0.axis('off')
ax0.set_title('Original Image - Ground Truth')

ax1.set_xlabel('Projection Angle (radians)')
ax1.set_ylabel('Detector Position')
ax1.axis('on')  # Turn axis back on since it was turned off

# Set x-ticks to show angles from 0 to π
x_ticks = np.linspace(0, sinogram.shape[-2], 5)
x_tick_labels = np.linspace(0, np.pi, 5)
ax1.set_xticks(x_ticks)
ax1.set_xticklabels([f'{x:.1f}π' for x in x_tick_labels/np.pi])

# Set y-ticks to show detector positions from -1 to 1
y_ticks = np.linspace(0, sinogram.shape[-1], 5)
y_tick_labels = np.linspace(-1, 1, 5)
ax1.set_yticks(y_ticks)
ax1.set_yticklabels([f'{y:.1f}' for y in y_tick_labels])

ax1.imshow(sinogram.squeeze().cpu().numpy().T, cmap='gray')
ax1.set_title('Sinogram (Radon Transform)')

plt.tight_layout()
plt.show()

Example Inverse Problem: Tomography Optimization Loop

#| fig-height: 4
#| fig-width: 10

# Initialize reconstruction with zeros
recon = th.zeros_like(img)
recon.requires_grad_(True)

# Set up optimizer
optimizer = th.optim.Adam([recon], lr=1e-3)

# Number of iterations
n_iters = 40

# L1 regularization strength
lambda_l1 = 1e-4

# Training loop
for i in range(n_iters):
    # Forward pass
    pred_sinogram = radon_forward(recon, angles)

    # Compute data fidelity loss
    data_loss = th.nn.functional.mse_loss(pred_sinogram, sinogram)

    # Compute L1 regularization loss
    l1_loss = lambda_l1 * th.norm(recon, p=1)

    # Total loss
    loss = data_loss + l1_loss

    # Backward pass
    optimizer.zero_grad()
    loss.backward()
    optimizer.step()

    if (i+1) % 10 == 0:
        print(f'Iteration {i+1}, Data Loss: {data_loss.item():.6f}, L1 Loss: {l1_loss.item():.6f}, Total Loss: {loss.item():.6f}')

Example Inverse Problem: Results and Metrics

recon = recon
# Display results
fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(15, 5))

ax1.imshow(img.squeeze().cpu().numpy(), cmap='gray')
ax1.set_title('Original')
ax1.axis('off')

ax2.imshow(sinogram.squeeze().cpu().numpy(), cmap='gray')
ax2.set_title('Sinogram')
ax2.axis('off')

ax3.imshow(recon.detach().squeeze().cpu().numpy(), cmap='gray', vmin=0, vmax=img.max())
ax3.set_title('Reconstructed')
ax3.axis('off')

plt.tight_layout()
plt.show()

# Print reconstruction quality metrics
original = img.squeeze().cpu().numpy()
reconstructed = recon.detach().squeeze().cpu().numpy()
print(f"PSNR: {PSNR(original, reconstructed):.2f}")
print(f"SSIM: {SSIM(original, reconstructed):.4f}")

References

Heckel, R. (2024). Deep Learning for Computational Imaging, Chapter 1.

Data Science for Electron Microscopy Lecture 8: Imaging Inverse Problems 1

What is Computational Imaging?

What is Computational Imaging in Electron Microscopy?

Roadmap

What is an Inverse Problem?

What makes imaging inverse problems challenging?

Example forward models

Why Is It Difficult?

1. Non‑uniqueness (Under‑sampling)

2. Ill‑conditioning (Noise Amplification)

Example: Deblurring 1

Example: Deblurring 2

Example: Deblurring 3

Example: Deblurring 4

Example: Deblurring 5: Blur, add noise, unblur

Example: Deblurring 6: Add noise, blur, unblur,

3. Non‑linearity & Unknown Parameters

Regularized Inversion

Example: Linear Inverse Problems (20th Century Theory)

Optimization Algorithms

Interpretation

Is there a better way to represent images than using fixed sparsity-promoting transforms?

Basic idea: Train a mapping from the measured data to the desired image

Plug-and-Play (PnP) Priors - Separating Forward Models from Learned Priors

Plug-and-Play (PnP) Priors

Tomography Motivation 1: Structure Directly Affects Functionality

Tomography Motivation 2: Projections Are Misleading

Tomography Motivation 3: Hetero-/Homo-geneous Structures

Tomography Motivation 4: Projection Problem for TEMs

Techniques for 3D structural analysis

All of these are inverse problems

Projection Requirement

Linear Projection Operation

3 Linear Projections

Tomographic Backprojection

Meaning of a Sinogram

Limited Tomography Reconstruction

Fourier Slice Theorem

The Radon Transform

Example Inverse Problem: Tomography - metrics and operators

Example Inverse Problem: Tomography

Example Inverse Problem: Tomography Optimization Loop

Example Inverse Problem: Results and Metrics

References

Data Science for Electron Microscopy
Lecture 8: Imaging Inverse Problems 1
