Machine Learning for Characterization and Processing
Unit 13: Physics-informed and constrained ML

AI 4 Materials / KI-Materialtechnologie

Prof. Dr. Philipp Pelz

FAU Erlangen-Nürnberg

FAU Logo IMN Logo CENEM Logo ERC Logo Eclipse Logo

01. Introduction & The Limits of Pure Data-Driven ML

The “Greediness” of Neural Networks

  • Neural networks are “greedy”: they will learn any pattern that reduces the loss, even if it violates physics.
  • Examples:
    • Predicting negative mass.
    • Violating the 2nd Law of Thermodynamics.
  • Goal: Hard-coding physical laws into the ML architecture.

Why “Pure” ML Fails in Materials Engineering

  • Data Scarcity: High-quality materials data is expensive (TEM, XRD, syncrotron).
  • Extrapolation: Physics models extrapolate; data-driven models often fail outside training bounds.
  • Inconsistency: Small shifts in measurements lead to wild, nonsensical predictions.

The Goal of Scientific Machine Learning (SciML)

  • Combine “White-Box” (Physics) with “Black-Box” (ML).
  • “Grey-Box” models: Leverage data AND physical laws.
  • Benefits: Better generalization, lower data requirements, and trust.

02. Taxonomy of Bias

How can we include physical knowledge?

  • Three main routes (Karniadakis et al. 2021):
    1. Observational Bias: Data enrichment.
    2. Learning Bias: Penalty-based methods (Loss function).
    3. Structural Bias: Designing architectures that satisfy constraints.

Observational Bias (Data Enrichment)

  • Prior knowledge enters through the data themselves.
  • Enriching small experimental datasets with simulations.
  • Ensuring datasets reflect symmetries (rotation, reflection) or invariants.

Learning Bias (The “Soft” Constraint)

  • Prior knowledge enters through the Loss Function.
  • Add a “Physics-Residual” term that penalizes non-physical predictions.
  • The PINN (Physics-Informed Neural Network) approach.

Structural Bias (The “Hard” Constraint)

  • Prior knowledge enters through the Network Architecture itself.
  • Example: Enforcing monotonicity by using non-negative weights.
  • Result: The network cannot violate the constraint by design.

03. Data Enrichment & Observational Bias

Choosing the Right Preprocessing

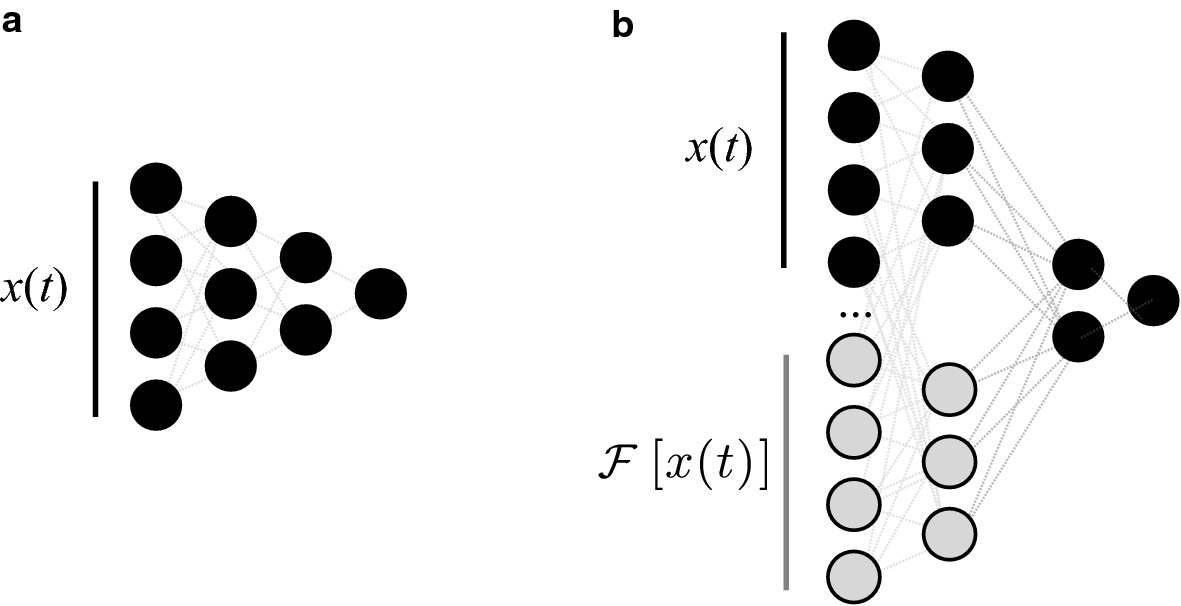

  • FFT for oscillating signals (melt pool vibrations, motor current).
  • Derivatives for sharpening features (strain rates, temperature gradients).
  • Functional transformations (log, exp) to linearize laws.

Case Study: Motor Current (Neuer 2024)

  • Identifying “Good” vs “Bad” operating modes.
  • Raw time series are noisy and high-dimensional.
  • FFT reveals characteristic oscillation frequencies of failure.

Expert Knowledge on Data Objects

  • Storing meta-information with sensors:
    • Units (kg, m, s)
    • Uncertainty (\(\pm \sigma\))
    • Transformation rules.
  • Enabling digital twins that “know” their own physical limits.

Statistical Enrichment

  • Incorporating measurement uncertainty into training.
  • Randomly drawing samples from the uncertainty distribution.
  • Increasing robustness against sensor noise.

04. Physics-Informed Neural Networks (PINNs)

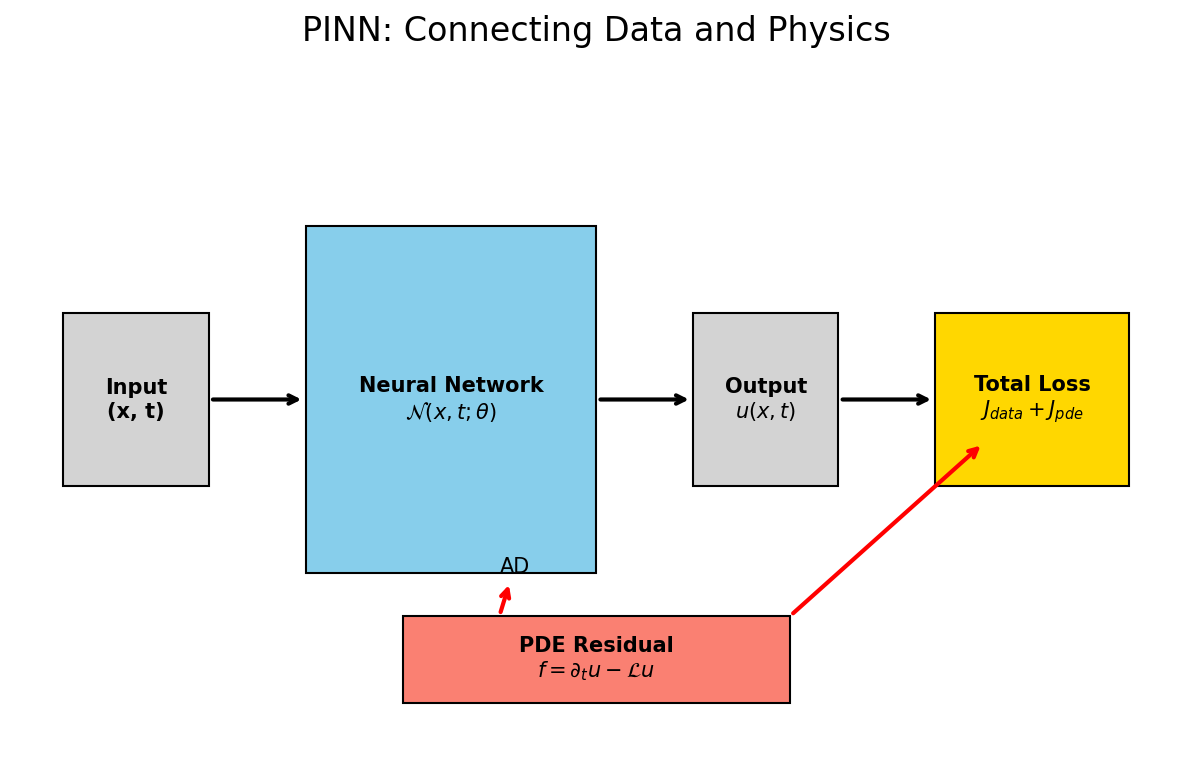

PINNs: The Fundamental Idea

  • (Raissi et al. 2019)
  • Neural Network as a mesh-free function approximator: \[\mathcal{N}(\boldsymbol{x}, t; \boldsymbol{\theta}) \approx u(\boldsymbol{x}, t)\]
  • No mesh needed; handles irregular geometries easily.

The Combined Loss Function

  • \(J(\boldsymbol{\theta}) = \lambda_{data} J_{data} + \lambda_{pde} J_{pde} + \lambda_{bc} J_{bc}\)
  • \(J_{data}\): Discrepancy with experimental points.
  • \(J_{pde}\): Discrepancy with the physical law (residual).

Automatic Differentiation (AD)

  • How does the computer know the derivative of a “Black-Box” network?
  • AD allows for exact calculation of \(\frac{\partial \mathcal{N}}{\partial x}\) at any point.
  • Frameworks: tf.GradientTape or torch.autograd.

Case Study: 1D Heat Equation

  • Governing Law: \(\frac{\partial T}{\partial t} = \alpha \frac{\partial^2 T}{\partial x^2}\).
  • The network takes \((x, t)\) and predicts \(T\).
  • AD computes the derivatives for the residual: \[R(x, t) = \frac{\partial \mathcal{N}}{\partial t} - \alpha \frac{\partial^2 \mathcal{N}}{\partial x^2}\]

Collocation Points

  • At “Collocation Points” (random coordinates in space/time), we evaluate only the PDE residual.
  • No labels needed for these points!
  • This allows the network to learn the physics in gaps between measurements.

Solving Inverse Problems

  • The Powerhouse: “Given noisy measurements of \(T\), what is the thermal conductivity \(\alpha\)?”
  • PINN learns the parameters \(\alpha\) as part of the training process.
  • Discovery of material properties from observation.

05. Hard Constraints & Advanced Topics

Boundary Conditions: Lagaris Substitution

  • \(g(t) = x_0 + t \mathcal{N}(t)\)
  • At \(t=0\), \(g(t) = x_0\) regardless of network output.
  • Satisfaction of BCs by design.

Monotonicity Constraints

  • Some relations are inherently monotonic (e.g., Hardening curves).
  • Enforcing positive derivatives by constraining weight signs or activations.
  • Prevents “nonsense” predictions in data-poor regions.

Dimensional Consistency

  • Physics models must be dimensionally homogeneous.
  • Encoding unit awareness into the input/output layers.
  • A discovered law must be dimensionally consistent to be valid.

Mixture Density Networks (MDNs)

  • Predicting a probability distribution instead of a single value.
  • Dealing with multi-modal physical states (e.g., phase transitions).
  • “Knowing what the model doesn’t know.”

06. Future Frontiers: Operator Learning

Beyond Functions: Operator Learning

  • (Lu et al. 2021)
  • We don’t just want to solve ONE case; we want to learn the general OPERATOR.
  • DeepONet: A simulator that can generalize to NEW geometries/conditions instantly.

DeepONet: The Architecture

  • Trunk Network: Coordinate space.
  • Branch Network: Initial/Boundary condition space.
  • Result: Real-time simulation for control loops in materials processing.

Governing Equation Discovery (SINDy)

  • Extracting the “hidden” law from raw data.
  • \(\dot{x} = \boldsymbol{\Theta}(x, t) \boldsymbol{\xi}\).
  • Using sparse regression to find the simplest law that explains the physics.

07. Summary & Conclusion

Recap: Unit 13

  • Physics acts as a powerful Regularizer.
  • AD is the engine that connects networks to equations.
  • PINNs solve differential equations and discover parameters.
  • Hard constraints provide mathematical guarantees.

Take-Home Messages

  • Pure data-driven models are often insufficient for materials science.
  • The role of the scientist is shifting from “Labeler” to “Teacher” (Constraint Designer).
  • Integration is key: Features + Physics + Uncertainty.

References & Further Reading

  • Neuer (2024): Ch. 6 (Physics-Informed Learning)
  • Sandfeld (2024): Ch. 19.6 (SciML Overview)
  • McClarren (2021): Ch. 11 (Physics-Informed & Hybrid Models)
