Mathematical Foundations of AI & ML
Unit 2: Linear Algebra for Machine Learning

Prof. Dr. Philipp Pelz

FAU Erlangen-Nürnberg

Title: Linear Algebra for ML

  • The Geometry of Intelligence: In this unit, we move from scalar arithmetic to the geometric world of vectors and matrices.
  • Dependency Role: Linear Algebra (LA) is the bedrock for PCA, SVD, Linear Regression, and Neural Networks.
  • Goal: Develop an intuitive understanding of high-dimensional spaces and transformations.

Unit 2 learning outcomes

By the end of this lecture, you will be able to:

  • Interpret matrices as linear operators that transform space.
  • Derive PCA as a variance-maximization problem using eigendecomposition.
  • Apply SVD for low-rank approximation and denoising of materials data.
  • Assess conditioning and numerical stability in linear systems.

Why LA still matters in modern ML

  • High-Dimensional Manifolds: Data doesn’t just “sit” in a table; it lives on non-linear manifolds in high-dim space [@sandfeld_materials_data_science].
  • Parallelism: Modern GPUs are optimized for matrix-vector products (\(\mathbf{y} = \mathbf{W}\mathbf{x} + \mathbf{b}\)).
  • Compactness: A million parameters in a Deep Net are just a series of matrix operations.

Notation contract for the semester

  • Scalars: \(a, b, c\) (italic lowercase).
  • Vectors: \(\mathbf{x}, \mathbf{y}, \mathbf{w}\) (bold lowercase). Assumed to be column vectors.
  • Matrices: \(\mathbf{A}, \mathbf{X}, \mathbf{W}\) (bold uppercase).
  • Transposition: \(\mathbf{x}^T\) turns a column into a row.
  • Inner Product: \(\langle \mathbf{x}, \mathbf{y} \rangle = \mathbf{x}^T \mathbf{y} = \sum x_i y_i\).

Scalars, vectors, matrices refresher

  • Vector: A point in \(D\)-dimensional space \(\mathbb{R}^D\).
  • Matrix: A collection of \(N\) vectors of dimension \(D\), written as an \(N \times D\) data matrix \(\mathbf{X}\).
  • Tensors: Generalization to more than 2 dimensions (e.g., RGB images are \(H \times W \times 3\)).

Vector spaces and subspaces

  • Vector Space: A set of vectors that is closed under addition and scalar multiplication.
  • Subspace: A “flat” region within a larger space (e.g., a plane in 3D).
  • In ML: We often look for a low-dimensional subspace that contains most of the data’s information.

Basis and change of basis

  • Basis: A set of linearly independent vectors that span the space.
  • Standard Basis: \(\mathbf{e}_1 = [1, 0, \dots]^T, \mathbf{e}_2 = [0, 1, \dots]^T\).

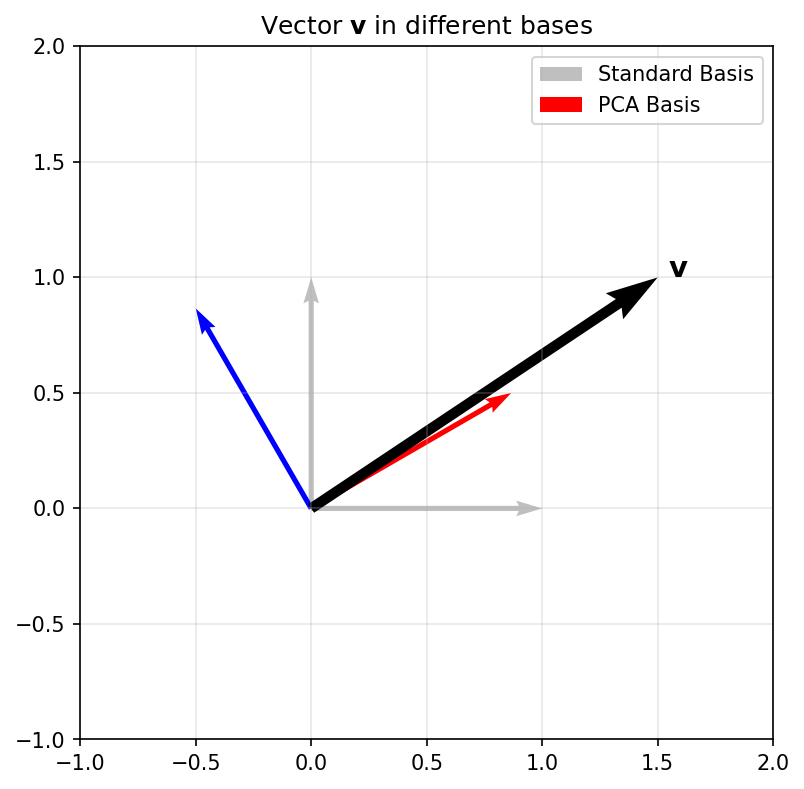

  • Change of Basis: Re-representing a vector in a new coordinate system.

Geometric Plot

Linear combinations and span

  • Linear Combination: \(\mathbf{v} = \sum \alpha_i \mathbf{b}_i\).
  • Span: The set of all possible linear combinations of a set of vectors.
  • Expressivity: A model’s ability to represent different data depends on the span of its basis functions.

Linear maps as operators

  • A matrix \(\mathbf{A}\) defines a mapping \(f(\mathbf{x}) = \mathbf{Ax}\).
  • Geometric View: Matrices can rotate, scale, and shear space.
  • Composition: \(f(g(\mathbf{x})) = \mathbf{A}(\mathbf{Bx}) = (\mathbf{AB})\mathbf{x}\).
//| panel: input
viewof a11 = Inputs.range([-2, 2], {value: 1, step: 0.1, label: "A11"})
viewof a12 = Inputs.range([-2, 2], {value: 0, step: 0.1, label: "A12"})
viewof a21 = Inputs.range([-2, 2], {value: 0, step: 0.1, label: "A21"})
viewof a22 = Inputs.range([-2, 2], {value: 1, step: 0.1, label: "A22"})
//| fig-align: center
Plot.plot({
  grid: true,
  x: {domain: [-3, 3]},
  y: {domain: [-3, 3]},
  aspectRatio: 1,
  marks: [
    Plot.ruleX([0]),
    Plot.ruleY([0]),
    Plot.line(origSq, {x: "x", y: "y", stroke: "lightgray", strokeWidth: 2}),
    Plot.line(transSq, {x: "x", y: "y", stroke: "dodgerblue", strokeWidth: 3})
  ]
})
//| output: false
origSq = [{x: 0, y: 0}, {x: 1, y: 0}, {x: 1, y: 1}, {x: 0, y: 1}, {x: 0, y: 0}]
transSq = origSq.map(p => ({
  x: a11 * p.x + a12 * p.y,
  y: a21 * p.x + a22 * p.y
}))

Column space and row space

  • Column Space \(C(\mathbf{A})\): The span of the columns. All possible outputs \(\mathbf{y} = \mathbf{Ax}\).
  • Row Space: The span of the rows.
  • In ML: If your target \(\mathbf{y}\) is not in \(C(\mathbf{X})\), your linear model will have non-zero residual error.

Nullspace and identifiability

  • Nullspace \(N(\mathbf{A})\): All \(\mathbf{x}\) such that \(\mathbf{Ax} = \mathbf{0}\).
  • Identifiability: If \(N(\mathbf{X})\) is non-trivial, multiple parameter sets produce identical predictions.

Matrix \(\mathbf{A}\): \(\begin{bmatrix} 1 & 2 \\ 2 & d \end{bmatrix}\)

//| panel: input
viewof dVal = Inputs.range([0, 6], {value: 4, step: 0.1, label: "d"})

When d=4, the matrix is Singular. The output space squashes to a 1D line!

//| fig-align: center
Plot.plot({
  grid: true,
  x: {domain: [-15, 15]},
  y: {domain: [-15, 15]},
  aspectRatio: 1,
  marks: [
    Plot.ruleX([0]),
    Plot.ruleY([0]),
    Plot.dot(mappedNull, {x: "x", y: "y", fill: d => d.is_null ? "red" : "dodgerblue", r: d => d.is_null ? 5 : 3, title: "Output Space"})
  ]
})
//| output: false
ptsGridNull = {
  let res = [];
  for(let i=-3; i<=3; i+=0.5) {
    for(let j=-3; j<=3; j+=0.5) {
      res.push({x0: i, y0: j});
    }
  }
  return res;
}
mappedNull = ptsGridNull.map(p => ({
  x: 1 * p.x0 + 2 * p.y0,
  y: 2 * p.x0 + dVal * p.y0,
  is_null: Math.abs(1 * p.x0 + 2 * p.y0) < 0.1 && Math.abs(2 * p.x0 + dVal * p.y0) < 0.1
}))

Rank and model capacity intuition

  • Rank: The number of linearly independent columns (or rows).
  • Full Rank: Maximum possible rank for a matrix’s dimensions.
  • Capacity: Rank measures the “true” dimensionality of the transformation. Low-rank matrices compress information.

Inner products and similarity

  • \(\langle \mathbf{x}, \mathbf{y} \rangle = \|\mathbf{x}\| \|\mathbf{y}\| \cos(\theta)\).
  • Cosine Similarity: Measures the alignment of two vectors, independent of their magnitude.
  • Orthogonality: \(\langle \mathbf{x}, \mathbf{y} \rangle = 0\). Vectors are at 90 degrees.

Norms (L1/L2/Frobenius)

  • L2 Norm: \(\|\mathbf{x}\|_2 = \sqrt{\sum x_i^2}\) (Euclidean distance).
  • L1 Norm: \(\|\mathbf{x}\|_1 = \sum |x_i|\) (Manhattan distance, promotes sparsity).
  • Frobenius Norm: \(\|\mathbf{A}\|_F = \sqrt{\sum \sum A_{ij}^2}\) (Size of a matrix).

Distance metrics and data geometry

  • Euclidean distance is the default, but it can be misleading in high dimensions (Curse of Dimensionality).
  • Mahalanobis Distance: Scales distances by the inverse covariance, accounting for correlations and feature variances [@murphy2012machine].

Orthogonality and orthonormal bases

  • Orthonormal Basis: \(\langle \mathbf{u}_i, \mathbf{u}_j \rangle = \delta_{ij}\) (All vectors unit length and mutually perpendicular).
  • Numerical Advantage: Calculating coefficients is just an inner product: \(\alpha_i = \langle \mathbf{v}, \mathbf{u}_i \rangle\).
  • Stability: Orthonormal matrices \(\mathbf{Q}\) preserve norms: \(\|\mathbf{Qx}\| = \|\mathbf{x}\|\).

Projection onto subspaces

Mathematical View

  • Formula: For a column space spanned by \(\mathbf{X}\): \[\hat{\mathbf{y}} = \mathbf{X}(\mathbf{X}^T\mathbf{X})^{-1}\mathbf{X}^T\mathbf{y}\]
  • Orthogonality: The error \(\mathbf{e} = \mathbf{y} - \hat{\mathbf{y}}\) is perpendicular to the subspace.
//| panel: input
viewof y1 = Inputs.range([-5, 5], {value: 2, step: 0.1, label: "y₁"})
viewof y2 = Inputs.range([-5, 5], {value: 4, step: 0.1, label: "y₂"})
viewof thetaProj = Inputs.range([0, Math.PI], {value: 0.5, step: 0.05, label: "Subspace Angle"})

Move \(\mathbf{y}\) (blue) and watch its projection \(\hat{\mathbf{y}}\) (green) drop orthogonally (red dashed) onto the subspace (gray).

//| fig-align: center
Plot.plot({
  grid: true, x: {domain: [-5, 5]}, y: {domain: [-5, 5]}, aspectRatio: 1,
  marks: [
    Plot.ruleX([0]), Plot.ruleY([0]),
    Plot.line([[-6*Math.cos(thetaProj), -6*Math.sin(thetaProj)], [6*Math.cos(thetaProj), 6*Math.sin(thetaProj)]], {stroke: "lightgray", strokeWidth: 4}),
    Plot.arrow([{x1: 0, y1: 0, x2: yProj.x, y2: yProj.y}], {x1: "x1", y1: "y1", x2: "x2", y2: "y2", stroke: "green", strokeWidth: 4}),
    Plot.arrow([{x1: 0, y1: 0, x2: y1, y2: y2}], {x1: "x1", y1: "y1", x2: "x2", y2: "y2", stroke: "blue", strokeWidth: 2}),
    Plot.line([[yProj.x, yProj.y], [y1, y2]], {stroke: "red", strokeDasharray: "4", strokeWidth: 2}),
    Plot.text([{x: y1, y: y2+0.5, text: "y"}], {x: "x", y: "y", text: "text", fill: "blue"}),
    Plot.text([{x: yProj.x, y: yProj.y-0.5, text: "y_hat"}], {x: "x", y: "y", text: "text", fill: "green"})
  ]
})
//| output: false
yProj = {
  const c = Math.cos(thetaProj);
  const s = Math.sin(thetaProj);
  const dot = y1*c + y2*s;
  return {x: dot*c, y: dot*s};
}

Projection matrix properties

  • \(\mathbf{P} = \mathbf{X}(\mathbf{X}^T\mathbf{X})^{-1}\mathbf{X}^T\)
  • Idempotence: \(\mathbf{P}^2 = \mathbf{P}\). Projecting twice doesn’t change anything.
  • Symmetry: \(\mathbf{P}^T = \mathbf{P}\).
  • Interpretation: \(\mathbf{P}\) acts as a “filter” that keeps only the component of \(\mathbf{y}\) aligned with \(\mathbf{X}\).

Least squares as projection

  • Linear Regression: \(\mathbf{y} \approx \mathbf{Xw}\).
  • We want \(\mathbf{Xw}\) to be the projection of \(\mathbf{y}\) onto the column space of \(\mathbf{X}\).
  • This geometric view leads directly to the Normal Equations.

Normal equations derivation

  1. Residual error: \(\mathbf{r} = \mathbf{y} - \mathbf{Xw}\)
  1. Orthogonality: \(\mathbf{X}^T \mathbf{r} = \mathbf{0}\) (Error must be orthogonal to feature span)
  1. Substitute: \(\mathbf{X}^T (\mathbf{y} - \mathbf{Xw}) = \mathbf{0}\)
  1. Expand & Rearrange: \(\mathbf{X}^T \mathbf{Xw} = \mathbf{X}^T \mathbf{y}\)
  1. Solve: \(\hat{\mathbf{w}} = (\mathbf{X}^T\mathbf{X})^{-1}\mathbf{X}^T\mathbf{y}\) [@bishop2006pattern]

Condition number intuition

  • Condition Number \(\kappa(\mathbf{A})\): Measures how much the output \(\mathbf{y}\) can change for a small change in input \(\mathbf{x}\).
  • Ratio of largest to smallest singular values: \(\kappa = \sigma_{max} / \sigma_{min}\).
  • Well-conditioned: \(\kappa \approx 1\). Ill-conditioned: \(\kappa \gg 1\).

Ill-conditioning in practice

  • Causes: Multicollinearity (features are nearly linear combinations of each other).
  • Effect: Small noise in \(\mathbf{y}\) leads to massive, unstable swings in \(\hat{\mathbf{w}}\).
  • Visual: The loss landscape becomes a very narrow, elongated valley.

Numerical stability and scaling

  • Standardization: Subtracting mean and dividing by std-dev helps equalize eigenvalues.
  • Numerical Trick: Never invert \((\mathbf{X}^T\mathbf{X})\) directly. Use QR decomposition or SVD for more stable solutions.

Eigenvalues/eigenvectors recap

  • \(\mathbf{Ax} = \lambda \mathbf{x}\).
  • Intuition: Eigenvectors are the “characteristic directions” where the transformation is just a simple scaling by \(\lambda\).
  • Observe how a symmetric matrix transforms a unit circle (gray) into an ellipse (blue). The principal axes (red) are the scaled eigenvectors!
//| panel: input
viewof s11 = Inputs.range([-3, 3], {value: 1.5, step: 0.1, label: "S11"})
viewof s12 = Inputs.range([-2, 2], {value: 0.8, step: 0.1, label: "S12 = S21"})
viewof s22 = Inputs.range([-3, 3], {value: 1.0, step: 0.1, label: "S22"})
//| fig-align: center
Plot.plot({
  grid: true, x: {domain: [-4, 4]}, y: {domain: [-4, 4]}, aspectRatio: 1,
  marks: [
    Plot.ruleX([0]), Plot.ruleY([0]),
    Plot.line(circlePts, {x: "x", y: "y", stroke: "gray", strokeDasharray: "4"}),
    Plot.line(ellipsePts, {x: "x", y: "y", stroke: "dodgerblue", strokeWidth: 2}),
    Plot.arrow(eigenVectors, {x1: 0, y1: 0, x2: "x", y2: "y", stroke: "red", strokeWidth: 3})
  ]
})
//| output: false
circlePts = Array.from({length: 100}, (_, i) => {
  let t = i * 2 * Math.PI / 99; return {x: Math.cos(t), y: Math.sin(t)};
});
ellipsePts = circlePts.map(p => ({
  x: s11*p.x + s12*p.y, y: s12*p.x + s22*p.y
}));
eigenVectors = {
  let T = s11 + s22; let D = s11*s22 - s12*s12;
  let L1 = T/2 + Math.sqrt(Math.max(0, T*T/4 - D));
  let L2 = T/2 - Math.sqrt(Math.max(0, T*T/4 - D));
  if (Math.abs(s12) < 0.001) return [{x: L1, y: 0}, {x: 0, y: L2}];
  let v1x = L1 - s22, v1y = s12;
  let n1 = Math.sqrt(v1x*v1x + v1y*v1y) || 1;
  let v2x = L2 - s22, v2y = s12;
  let n2 = Math.sqrt(v2x*v2x + v2y*v2y) || 1;
  return [
    {x: (v1x/n1)*L1, y: (v1y/n1)*L1},
    {x: (v2x/n2)*L2, y: (v2y/n2)*L2}
  ];
}

Spectral decomposition intuition

  • For a symmetric matrix \(\mathbf{S}\): \(\mathbf{S} = \mathbf{U \Lambda U}^T\).
  • Geometric View: A symmetric matrix is just a rotation to the eigenbasis, a scaling along those axes, and a rotation back.
  • Decomposition: \(\mathbf{S} = \sum \lambda_i \mathbf{u}_i \mathbf{u}_i^T\).

Positive semidefinite matrices

  • \(\mathbf{x}^T \mathbf{Ax} \ge 0\) for all \(\mathbf{x}\).
  • Eigenvalues: All \(\lambda_i \ge 0\).
  • Covariance Matrices are always PSD. This ensures that “variance” can never be negative.

Covariance matrix geometry

  • Data Matrix \(\mathbf{X}\) (centered): \(\mathbf{S} = \frac{1}{N-1}\mathbf{X}^T\mathbf{X}\).
  • The surface \(\mathbf{x}^T \mathbf{S}^{-1} \mathbf{x} = 1\) defines an Error Ellipsoid.
  • The axes are the eigenvectors of \(\mathbf{S}\), with lengths proportional to \(\sqrt{\lambda_i}\).
//| panel: input
viewof varX = Inputs.range([0.1, 5], {value: 3, step: 0.1, label: "Var(X)"})
viewof varY = Inputs.range([0.1, 5], {value: 1, step: 0.1, label: "Var(Y)"})
viewof covXY = Inputs.range([-4, 4], {value: 1.2, step: 0.1, label: "Cov(X,Y)"})
//| fig-align: center
Plot.plot({
  grid: true, x: {domain: [-6, 6]}, y: {domain: [-6, 6]}, aspectRatio: 1,
  marks: [
    Plot.dot(randomData, {x: "x", y: "y", r: 2, fill: "gray", fillOpacity: 0.5}),
    Plot.line(covarianceEllipse, {x: "x", y: "y", stroke: "red", strokeWidth: 3})
  ]
})
//| output: false
validCov = Math.max(-Math.sqrt(varX*varY)*0.99, Math.min(Math.sqrt(varX*varY)*0.99, covXY));
randomData = {
  let pts = [];
  let L11 = Math.sqrt(varX);
  let L21 = validCov / L11;
  let L22 = Math.sqrt(Math.max(0, varY - L21*L21));
  for(let i=0; i<400; i++) {
    let u1 = Math.random(), u2 = Math.random();
    let z0 = Math.sqrt(-2.0 * Math.log(u1)) * Math.cos(2.0 * Math.PI * u2);
    let z1 = Math.sqrt(-2.0 * Math.log(u1)) * Math.sin(2.0 * Math.PI * u2);
    pts.push({x: L11*z0, y: L21*z0 + L22*z1});
  }
  return pts;
}
covarianceEllipse = {
  let pts = [];
  let T = varX + varY; let D = varX*varY - validCov*validCov;
  let L1 = T/2 + Math.sqrt(Math.max(0, T*T/4 - D));
  let L2 = T/2 - Math.sqrt(Math.max(0, T*T/4 - D));
  let v1x = L1 - varY, v1y = validCov;
  let n1 = Math.sqrt(v1x*v1x + v1y*v1y) || 1; v1x/=n1; v1y/=n1;
  let v2x = L2 - varY, v2y = validCov;
  let n2 = Math.sqrt(v2x*v2x + v2y*v2y) || 1; v2x/=n2; v2y/=n2;

  for(let i=0; i<=100; i++) {
    let t = i * 2 * Math.PI / 100;
    let c = Math.cos(t), s = Math.sin(t);
    // Multiply by 2.0 to show the 2-sigma ellipse
    pts.push({
      x: 2.0 * (Math.sqrt(L1)*v1x*c + Math.sqrt(L2)*v2x*s),
      y: 2.0 * (Math.sqrt(L1)*v1y*c + Math.sqrt(L2)*v2y*s)
    });
  }
  return pts;
}

PCA as variance maximization

  • PCA seeks directions \(\mathbf{u}\) that maximize the variance of the projected data: \(J = \mathbf{u}^T \mathbf{Su}\).
  • Subject to \(\|\mathbf{u}\|=1\), stationary point is \(\mathbf{Su} = \lambda \mathbf{u}\).
  • The best direction is the eigenvector with the largest eigenvalue.
//| panel: input
viewof pcaTheta = Inputs.range([0, Math.PI], {value: 0, step: 0.05, label: "Projection Angle"})

Projected Variance:

Rotate the line (gray). Watch the variance of the projected points (red) change! It peaks when aligned with the principal component.

//| fig-align: center
Plot.plot({
  grid: true, x: {domain: [-6, 6]}, y: {domain: [-6, 6]}, aspectRatio: 1,
  marks: [
    Plot.ruleX([0]), Plot.ruleY([0]),
    Plot.link(pcaLinkData, {x1: "x1", y1: "y1", x2: "x2", y2: "y2", stroke: "pink", strokeWidth: 1}),
    Plot.dot(pcaData, {x: "x", y: "y", fill: "lightgray", r: 3}),
    Plot.line([[-7*Math.cos(pcaTheta), -7*Math.sin(pcaTheta)], [7*Math.cos(pcaTheta), 7*Math.sin(pcaTheta)]], {stroke: "gray", strokeWidth: 2}),
    Plot.dot(pcaProjData, {x: "x", y: "y", fill: "red", r: 4})
  ]
})
//| output: false
pcaData = {
  let pts = [];
  let ang = Math.PI / 6;
  let s_major = 3.0, s_minor = 0.5;
  for (let i = 0; i < 150; i++) {
    let u1 = Math.max(0.0001, (Math.sin(i * 123.456) + 1)/2);
    let u2 = Math.max(0.0001, (Math.cos(i * 789.123) + 1)/2);
    let z0 = Math.sqrt(-2.0 * Math.log(u1)) * Math.cos(2.0 * Math.PI * u2);
    let z1 = Math.sqrt(-2.0 * Math.log(u1)) * Math.sin(2.0 * Math.PI * u2);
    let x_raw = s_major * z0; let y_raw = s_minor * z1;
    pts.push({ x: x_raw * Math.cos(ang) - y_raw * Math.sin(ang), y: x_raw * Math.sin(ang) + y_raw * Math.cos(ang) });
  }
  return pts;
}
pcaProjData = pcaData.map(p => {
  let c = Math.cos(pcaTheta), s = Math.sin(pcaTheta);
  let proj = p.x * c + p.y * s;
  return {x: proj * c, y: proj * s, proj_val: proj};
})
pcaLinkData = pcaData.map((p, i) => ({
  x1: p.x, y1: p.y, x2: pcaProjData[i].x, y2: pcaProjData[i].y
}))
pcaVar = d3.variance(pcaProjData, d => d.proj_val)

SVD overview

  • Any \(N \times D\) matrix \(\mathbf{X}\) can be decomposed as: \(\mathbf{X} = \mathbf{U \Sigma V}^T\).
%%| echo: false
%%| fig-align: center
%%{init: {'theme': 'dark', 'themeVariables': { 'darkMode': true, 'background': 'transparent' }}}%%
graph LR
    X["X"] --> Eq["="]
    Eq["="] --> U["U"]
    U["U"] --> Sigma["Σ"]
    Sigma["Σ"] --> VT["V^T"]

    subgraph Dimensions
    X---D1["N x D"]
    U---D2["N x N"]
    Sigma---D3["N x D"]
    VT---D4["D x D"]
    end

    style Dimensions fill:#1e1e1e,stroke:#555,stroke-width:2px,color:#fff
  • \(\mathbf{U}\): Left singular vectors (eigenvectors of \(\mathbf{XX}^T\)).
  • \(\mathbf{V}\): Right singular vectors (eigenvectors of \(\mathbf{X}^T\mathbf{X}\) - the Principal Components).
  • \(\mathbf{\Sigma}\): Diagonal matrix of singular values \(\sigma_i = \sqrt{\lambda_i}\).

SVD and low-rank approximation

  • Compression: By keeping only the top \(k\) singular values, we get the best rank-\(k\) approximation \(\mathbf{X}_k\).
  • Denoising: Small singular values often correspond to noise. Throwing them away cleans the signal.
  • Application: Background subtraction in videos or using dictionary learning (like k-SVD) to reconstruct sparse EELS datasets [@monier2020fast].

Eckart–Young idea (conceptual)

  • The matrix \(\mathbf{X}_k\) obtained by SVD is the solution to: \[ \min_{\mathbf{A}: \text{rank}(\mathbf{A})=k} \|\mathbf{X} - \mathbf{A}\|_F \]
  • This means SVD gives the mathematically optimal compression in terms of squared error.

Non-negative Matrix Factorization (NMF)

  • What if our data is strictly non-negative (e.g., pixel intensities, chemical concentrations, spectra)?
  • NMF: Factorize \(\mathbf{X} \approx \mathbf{WH}\) subject to \(\mathbf{W} \ge 0, \mathbf{H} \ge 0\).
  • Interpretation: \(\mathbf{H}\) contains the “basis” vectors (components/parts), and \(\mathbf{W}\) contains the activations (mixture weights).
  • Difference from SVD/PCA: No orthogonality constraint, and no subtraction allowed. This forces a parts-based representation.

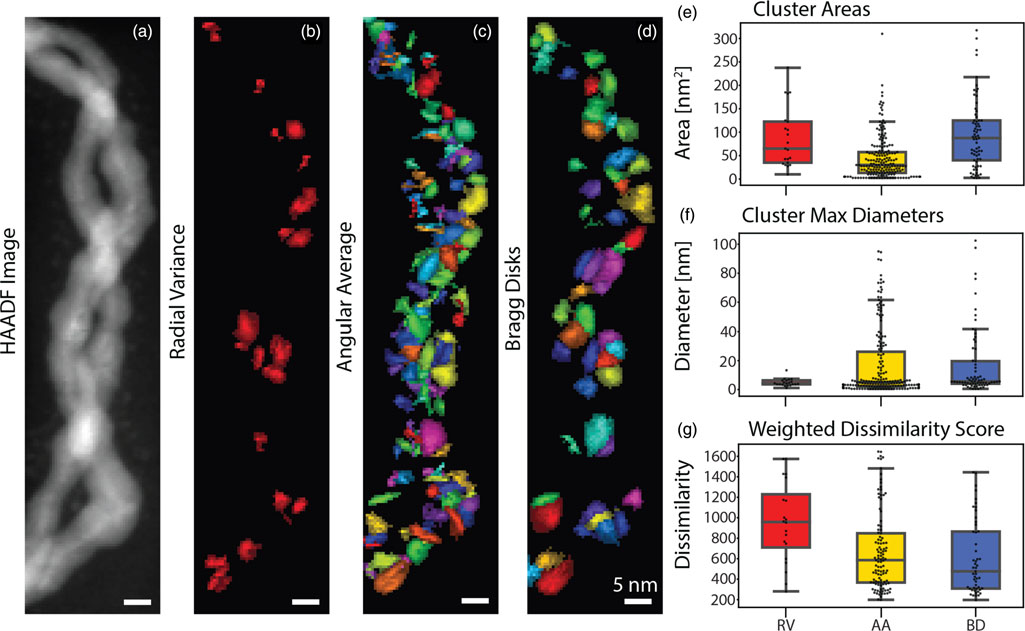

Example: Iterative NMF applied to 4D-STEM of Ag films. It discovers overlapping physical grains as parts.

NMF vs PCA/SVD conceptually

  • PCA/SVD: Basis vectors (e.g., Eigenfaces) can have negative values. They form “holistic” representations where adding/subtracting components creates the original.
  • NMF: Basis vectors look like individual, localized features (a nose, a sharp spectral peak). Models data as a strictly additive combination of these parts.
  • Applications: Topic modeling in NLP, discovering chemical phases in material science, and audio source separation.

Pseudo-inverse and solvability

  • Moore-Penrose Pseudo-inverse: \(\mathbf{X}^\dagger = \mathbf{V \Sigma}^\dagger \mathbf{U}^T\).
  • Works even if \(\mathbf{X}^T\mathbf{X}\) is not invertible.
  • Provides the minimum norm solution to underdetermined systems.

Example: Sparse STEM-EELS reconstruction

  • Setup: In atomic-scale STEM-EELS, acquiring every pixel damages the sample. Solution: randomly sample \(\sim 20\%\) of positions and reconstruct the rest.
  • Linear system: For each energy band, \(\mathbf{y}_{\text{obs}} = \mathbf{M}\mathbf{x}\) where \(\mathbf{M}\) is a fat \(N_{\text{obs}} \times N_{\text{pix}}\) sampling matrix (\(N_{\text{obs}} \ll N_{\text{pix}}\)). Severely underdetermined — infinite \(\mathbf{x}\) fit the data.
  • Pseudo-inverse role: The minimum-norm pseudo-inverse gives a unique answer, but naive use overfits noise. Monier et al. [@monier2020fast] add spatio-spectral regularization (“CLS” = constrained least squares) — still a pseudo-inverse, just on an augmented system.
  • Takeaway: Same algebra you just saw, applied to a \(10^6\)-dimensional electron microscopy inverse problem.

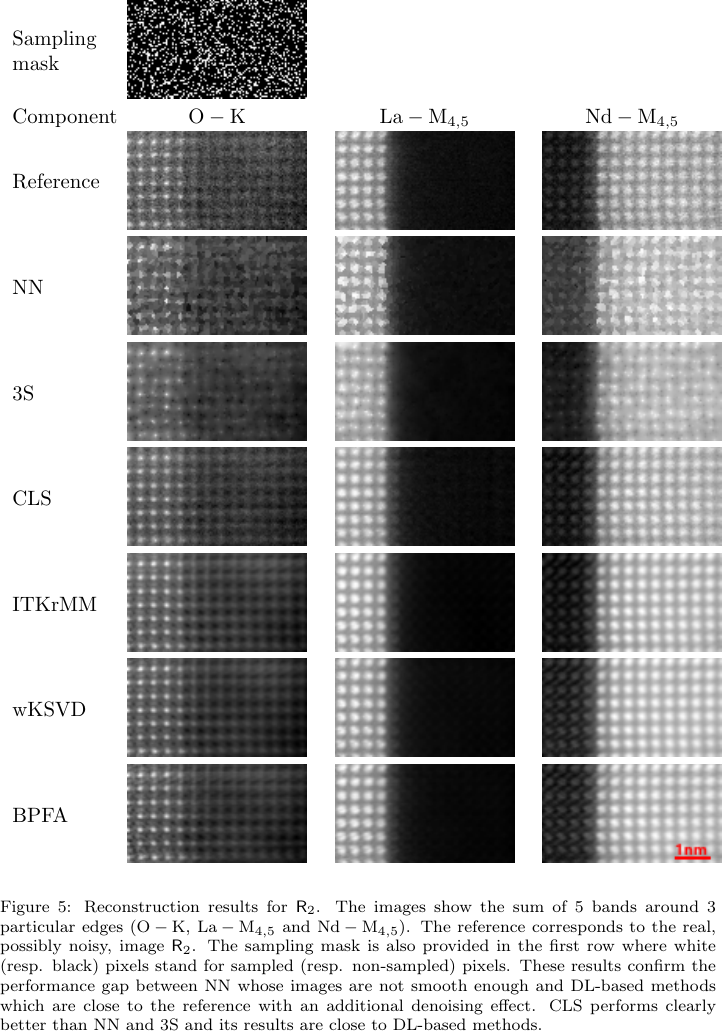

Fig. 5 from @monier2020fast: From a random \(\approx 20\%\) sampling mask (top), different linear-algebra estimators reconstruct the full STEM-EELS image over the O-K, La-M\(_{4,5}\) and Nd-M\(_{4,5}\) edges. “NN” is nearest-neighbor (baseline); “3S” and “CLS” are regularized pseudo-inverse / least-squares solutions; the last three are dictionary-learning refinements. CLS matches the dictionary methods at a fraction of the runtime.

Linear regression matrix form

  • Model: \(\mathbf{y} = \mathbf{Xw} + \boldsymbol{\epsilon}\).
  • We assume \(\boldsymbol{\epsilon} \sim \mathcal{N}(\mathbf{0}, \sigma^2 \mathbf{I})\).
  • Maximum Likelihood leads to the same Normal Equations derived from geometry.

Regularization in matrix language

  • Ridge Regression: \(\hat{\mathbf{w}}_{ridge} = (\mathbf{X}^T\mathbf{X} + \lambda \mathbf{I})^{-1}\mathbf{X}^T\mathbf{y}\).
  • Spectral View: Adding \(\lambda \mathbf{I}\) shifts all eigenvalues of \(\mathbf{X}^T\mathbf{X}\) by \(+\lambda\), ensuring invertibility and suppressing high-variance (noisy) directions.

L1 vs L2 geometric intuition

  • L2 (Ridge): Constraint is a hypersphere (blue). The solution moves smoothly toward the origin.
  • L1 (Lasso): Constraint is a hyper-diamond (red). The solution is likely to hit a “corner,” setting some weights to exactly zero (Feature Selection).
//| panel: input
viewof constraintC = Inputs.range([0.1, 2.5], {value: 0.8, step: 0.1, label: "Constraint Size (C)"})

Increase C (weaker regularization, \(\lambda \to 0\)) to see the constraint regions expand to meet the unconstrained optimum (gray ellipses).

//| fig-align: center
Plot.plot({
  grid: true, x: {domain: [-2, 3]}, y: {domain: [-2, 3]}, aspectRatio: 1,
  marks: [
    Plot.ruleX([0]), Plot.ruleY([0]),
    Plot.line(l2Boundary, {x: "x", y: "y", stroke: "blue", strokeWidth: 2}),
    Plot.line(l1Boundary, {x: "x", y: "y", stroke: "red", strokeWidth: 2}),
    Plot.dot([{x: 1.5, y: 1.0}], {x: "x", y: "y", r: 4, fill: "black"}),
    Plot.text([{x: 1.5, y: 1.0, text: "w* (OLS)"}], {x: "x", y: "y", text: "text", dy: -10}),
    Plot.line(lossContour1, {x: "x", y: "y", stroke: "gray"}),
    Plot.line(lossContour2, {x: "x", y: "y", stroke: "gray"}),
    Plot.line(lossContour3, {x: "x", y: "y", stroke: "gray"})
  ]
})
//| output: false
l2Boundary = Array.from({length: 100}, (_, i) => {
  let t = i * 2 * Math.PI / 99; return {x: constraintC * Math.cos(t), y: constraintC * Math.sin(t)};
});
l1Boundary = [
  {x: constraintC, y: 0}, {x: 0, y: constraintC}, {x: -constraintC, y: 0},
  {x: 0, y: -constraintC}, {x: constraintC, y: 0}
];
makeContour = (r) => {
  return Array.from({length: 100}, (_, i) => {
    let t = i * 2 * Math.PI / 99;
    return {
      x: 1.5 + r * 1.5 * Math.cos(t) + r * 0.5 * Math.sin(t),
      y: 1.0 + r * 0.5 * Math.cos(t) + r * 0.8 * Math.sin(t)
    };
  });
};
lossContour1 = makeContour(0.4);
lossContour2 = makeContour(0.8);
lossContour3 = makeContour(1.3);

Feature correlation and multicollinearity

  • If two features are perfectly correlated, \(\mathbf{X}^T\mathbf{X}\) is singular (rank deficient).
  • If highly correlated, eigenvalues are near zero, and \((\mathbf{X}^T\mathbf{X})^{-1}\) explodes.
  • Solution: PCA preprocessing or Ridge regularization.

Whitening/standardization rationale

  • Whitening: Transform data so \(\mathbf{S} = \mathbf{I}\).
  • Formula: \(\mathbf{X}_{white} = \mathbf{X} \mathbf{V \Lambda}^{-1/2} \mathbf{V}^T\).
  • This removes all correlations and gives every direction equal variance, which is crucial for some algorithms like Independent Component Analysis (ICA).

Gram matrix interpretation

  • Gram Matrix \(\mathbf{K} = \mathbf{XX}^T\).
  • \(K_{ij} = \langle \mathbf{x}_i, \mathbf{x}_j \rangle\). It stores all pairwise similarities between samples.
  • Size: \(N \times N\). If \(N \ll D\), it’s more efficient to work with \(\mathbf{K}\) than \(\mathbf{X}\).

Kernel hint from inner products

  • Many ML algorithms only depend on the data through inner products \(\langle \mathbf{x}_i, \mathbf{x}_j \rangle\).
  • Kernel Trick: Replace \(\langle \mathbf{x}_i, \mathbf{x}_j \rangle\) with a non-linear function \(k(\mathbf{x}_i, \mathbf{x}_j)\) that computes an inner product in a much higher-dimensional feature space.

From LA to optimization bridge

  • We’ve seen that solving \(\mathbf{Ax}=\mathbf{b}\) is equivalent to minimizing \(J(\mathbf{x}) = \frac{1}{2}\mathbf{x}^T\mathbf{Ax} - \mathbf{b}^T\mathbf{x}\).
  • LA gives us the analytical solutions; Unit 3 will show how to find these solutions iteratively when matrices are too big to fit in memory.

Materials example: process matrix \(\mathbf{X}\)

  • Rows: Individual batches or experiments.
  • Columns: Sensor readings, alloy compositions, temperature setpoints.
  • Goal: Find the subspace of “stable processing” that ignores sensor noise.
import numpy as np
import pandas as pd
from scipy.linalg import svd

# 1. Collect process data (N batches, D sensors)
data = {
    'Temp_Zone1':  [1050, 1052, 1048, 1055],
    'Pressure':    [2.1, 2.15, 2.05, 2.2],
    'Ni_content':  [0.45, 0.44, 0.46, 0.45],
}
df = pd.DataFrame(data)

# 2. Form the Process Matrix X and center it
X = df.values
X_centered = X - np.mean(X, axis=0)

# 3. SVD -> principal directions of variation
U, Sigma, Vt = svd(X_centered, full_matrices=False)

# 4. Interpret the result
explained = Sigma**2 / np.sum(Sigma**2)
print("Singular values:     ", np.round(Sigma, 3))
print("Explained variance:  ", np.round(explained, 3))
print("Primary direction:   ", np.round(Vt[0], 2))

# 5. Rank-1 approximation = "stable processing" subspace
X_rank1 = U[:, :1] @ np.diag(Sigma[:1]) @ Vt[:1, :]

Materials example: image embeddings

  • A \(1024 \times 1024\) TEM image is a vector in \(\mathbb{R}^{1,048,576}\).
  • Dimensionality Reduction: We use PCA to find the 50 “eigen-microstructures” that describe 90% of the morphological variance [@ryan2021machine].
#| echo: true
#| eval: false
import numpy as np
from sklearn.decomposition import PCA

# X is our dataset of N flattened TEM images: shape (N, 1048576)
X = np.load("tem_images.npy")

# Fit PCA and extract the top 50 components
pca = PCA(n_components=50)
X_reduced = pca.fit_transform(X)

# Check how much morphological variance is captured
var_explained = np.sum(pca.explained_variance_ratio_)
print(f"Top 50 components explain {var_explained * 100:.1f}% of variance.")

# The 'eigen-microstructures' are the principal components
eigen_microstructures = pca.components_  # shape (50, 1048576)

Materials example: spectra basis

  • X-ray Diffraction (XRD): Each scan is a vector.
  • Basis Functions: Pure phases (e.g., Austenite, Martensite) act as a basis.
  • Task: Decompose a mixed spectrum into a linear combination of pure phase bases.
#| echo: true
#| eval: false
import numpy as np

# Basis matrix: columns are pure phase spectra (e.g., Austenite, Martensite)
# shape: (n_angles, n_phases)
X_basis = np.load("pure_phases_basis.npy")

# Mixed measured XRD spectrum vector
# shape: (n_angles,)
y_mixed = np.load("mixed_spectrum.npy")

# Solve Xw = y using Ordinary Least Squares
# Finds fractions 'w' that minimize reconstruction error ||Xw - y||^2
fractions, residuals, rank, s = np.linalg.lstsq(X_basis, y_mixed, rcond=None)

# Normalize the fractions to sum to 100%
volume_fractions = fractions / np.sum(fractions)

print(f"Austenite:  {volume_fractions[0]*100:.1f}%")
print(f"Martensite: {volume_fractions[1]*100:.1f}%")

# The reconstructed spectrum is the projection onto the basis span
y_reconstructed = X_basis @ fractions

The problem with unconstrained Least Squares

  • The OLS solution \(\hat{\mathbf{w}} = (\mathbf{X}^T\mathbf{X})^{-1}\mathbf{X}^T\mathbf{y}\) can yield negative fractions, which is physically impossible for volume fractions!
  • Non-negative Least Squares (NNLS) solves this by enforcing \(\mathbf{w} \ge 0\).
  • But what if we don’t even know the pure phase basis \(\mathbf{X}\) beforehand?

Enter Non-negative Matrix Factorization (NMF)

  • Unsupervised Discovery: If we only have the mixed datasets \(\mathbf{X}_{mixed}\), NMF can simultaneously discover the pure phases \(\mathbf{H}\) and their physical concentrations \(\mathbf{W}\).
  • \(\mathbf{X}_{mixed} \approx \mathbf{WH}\), with \(\mathbf{W} \ge 0, \mathbf{H} \ge 0\).
  • Physical Meaning: The non-negativity constraint ensures that spectra don’t have negative intensities and concentrations are strictly positive.
  • It naturally extracts a parts-based representation (the separate physical phases) directly from the mixed data.

Code: NMF for Spectral Unmixing

#| echo: true
#| eval: false
from sklearn.decomposition import NMF

# X_mixed: rows are different sample spots, columns are XRD angles
# We suspect there are 2 pure phases (components)
nmf = NMF(n_components=2, init='nndsvd', random_state=42)

# W: The discovered physical concentrations (N samples x 2 phases)
W = nmf.fit_transform(X_mixed)

# H: The discovered pure phase spectra (2 phases x D angles)
H = nmf.components_

Common pitfalls checklist

Mini quiz slide

  1. If \(\mathbf{A}\) has rank \(k\), how many non-zero singular values does it have?
      1. \(k\)
      1. \(N\)
      1. \(D\)
      1. \(1\)
  2. As the regularization parameter \(\lambda \to \infty\) in Ridge regression, the weights \(\hat{\mathbf{w}}\):
      1. Approach the OLS solution
      1. Approach \(\mathbf{0}\)
      1. Approach \(\infty\)
      1. Become sparse (exactly zero)
  3. Can standard PCA find a non-linear circular pattern in 2D?
      1. Yes, it identifies the radius
      1. No, it only finds linear orthogonal directions of max variance
      1. Yes, if we use enough components
      1. Only if the data is centered

Exercise task 1 scaffold: Projection

  • Generate a 3D cloud of points.
  • Project them onto a 2D plane manually using a projection matrix.
  • Visualize the “shadow” of the data.

Exercise task 2 scaffold: SVD

  • Load a noisy materials image.
  • Perform SVD.
  • Plot singular values (Scree plot).
  • Reconstruct the image using \(k=5, 20, 100\) components and observe denoising.

Exercise task 3 scaffold: Least Squares

  • Fit a line to noisy experimental data.
  • Introduce a redundant, correlated feature.
  • Observe the weight instability.
  • Fix it using Ridge regression.

Continue
